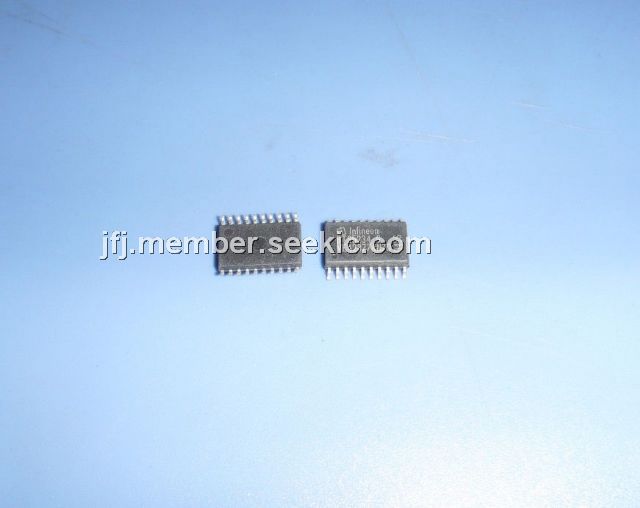

BTS5234G

high-side power switch, PDSO-20, 4.5 V ~ 28 V, 45 mOhm, 3.3A

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.50~2.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.50~2.00

PartNumber:: BTS5234G

Brand:: Infineon Technologies AG - Infineon | Pack: DIP | D/C: 04+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Helen Li's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-03-14

From Other Seller

Part Number:BTS5234G
US $1.50 - 2.00
A50L-0001-0175

US $100.00 - 100.00 / Piece
(0) Remove
RTL8309SC

US $1.50 - 2.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The BTS5234G is a dual channel high-side power switch in P-DSO-20-21 package providing embedded protective functions. The power transistor is built by a N-channel vertical power MOSFET with charge pump. The device is monolithically integrated in Smart SIPMOS technology. The applications of the BTS5234G include μC compatible high-side power switch with diagnostic feedback for 12 V grounded loads, All types of resistive, inductive and capacitive loads, Suitable for loads with high inrush currents, so as lamps, Suitable for loads with low currents, so as LEDs and Replaces electromechanical relays, fuses and discrete circuits.

Parametrics

BTS5234G absolute maximum ratings: (1)Operating voltage, Vbb(on): 4.5 to 28V; (2)Over voltage protection, Vbb(AZ): 41 V; (3)On-State resistance, RDS(ON): 60 mΩ; (4)Nominal load current (one channel active), IL(nom): 3.3 A; (5)Current limitation, IL(LIM): 23 A; (6)Current limitation repetitive, IL(SCr): 6A; (7)Standby current for whole device with load, Ibb(OFF): 2.5 μA.

Features

BTS5234G features: (1)Very low standby current; (2)3.3 V and 5 V compatible logic pins; (3)Improved electromagnetic compatibility (EMC); (4)Stable behavior at under voltage; (5)Logic ground independent from load ground; (6)Secure load turn-off while logic ground disconnected; (7)Optimized inverse current capability.
