Product Summary

The CX24500-13A1Z is integrated into a fully engineered interactive TV STB reference development system that implements third-party interactive middleware/real-time operating system (RTOS) platforms and provides a complete set of STB low-level drivers. The CX24500-13A1Z can serve as a common back-end platform that easily interfaces to a variety of broadband front ends, including QPSK, 8-PSK, DVB-S2, QAM, OFDM, 8-VSB, ADSL/VDSL, 802.3, 802.11a/b/g, Homeplug, MoCA or IEEE 1394 through either transport stream, MII or PCI interfaces. The CX24500-13A1Z provides a flexible STB solution that can be targeted to a variety of broadband operators while minimizing hardware/software development costs.

Features

CX24500-13A1Z features: (1) high performance; (2) 667MHz 32-bit DDR-2 memory interface with optional additional 16-bit DDR-2 interface for high performance applications; (3) DIRECTV/DVB transport stream demutiplexing; (4) multi-plane video/graphics display controller; (5) supports video plane re-sizing for format conversion, picture-in-picture, or picture-in-graphics; (6) Intergrated V.92 modem.

Diagrams

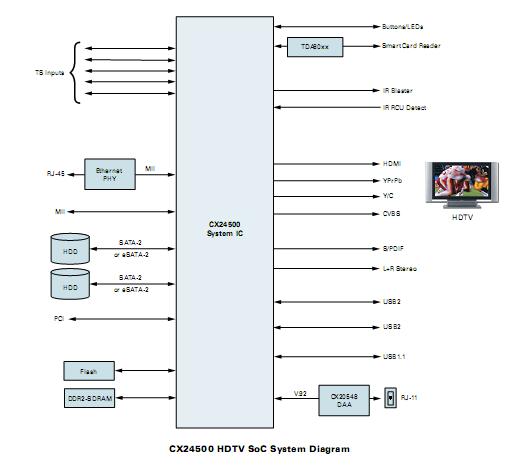

CX24500-13A1Z System Diagram"
