Product Summary
The CXD3029R is a digital signal processor LSI for CD players. The CXD3029R incorporates a digital servo, high & bass boost, shock-proof memory controller, 1-bit DAC and analog low-pass filter. CD players are one kind of applications of the CXD3029R.
Parametrics
CXD3029R absolute maximum ratings: (1) Supply voltage VDD, AVDD: -0.3 to +4.6V; (2) Input voltage VI: -0.3 to +4.6V; (3) Output voltage VO: -0.3 to +4.6V; (4) Storage temperature Tstg: -40 to +125°C; (5) Supply voltage difference: AVss-Vss: -0.3 to +0.3V, AVDD-VDD: -0.3 to +0.3V(ADD< 2.2V) , C0.3 to +1.4V ((AVDD = 2.2 to 3.6V) .
Features
CXD3029R features: (1) All digital signal processing during playback is performed with a single chip; (2) Highly integrated mounting possible due to a built-in RAM; (3) Digital Signal Processor (DSP) Block; (4) Digital Servo (DSSP) Block; (5) Shock-proof Memory Controller Block; (5) Digital Filter, DAC and Analog Low-pass Filter Blocks.

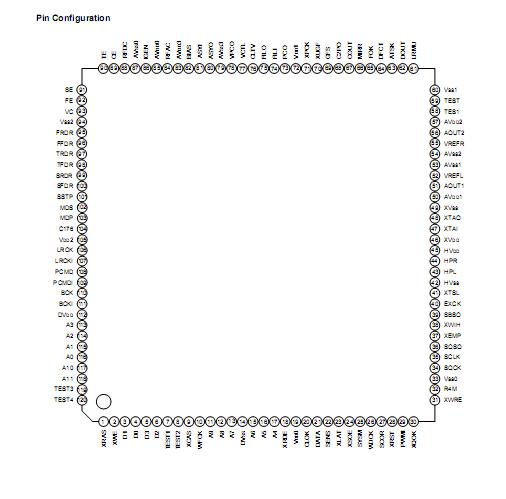

Diagrams
"
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 CXD3029R |
Other |
|
Data Sheet |
Negotiable |
|
||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||
|
CXD3000R |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
CXD3003R |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
CXD3005R |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
CXD3008Q |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
CXD3009Q |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
CXD3011R-1 |
Other |
|
Data Sheet |
Negotiable |
|
||||
