Product Summary
The GDS1110AB is general-purpose, 32-bit RISC microprocessor with a 16 Kbyteinstruction cache (Icache) , an 8 Kbyte write-back data cache (Dcache) , a minicache, a write buffer, a read buffer, an MMU, an LCD controller, and serial I/O combined in a single component. The GDS1110AB provides portable applications with high-end computing performance without requiring users to sacrifice available battery time. The power-management prfunctionality of the GDS1110AB provides further power savings.
Parametrics
GDS1110AB absolute maximum ratings: (1) VDD: 1.47V (Minimum internal power supply voltage) , 1.55V (Nominal internal power supply voltage) , 1.63V (Maximum internal power supply voltage) ; (2) VDDX: 3V (Minimum external power supply voltage) , 3.3V (Nominal external power supply voltage) , 3.6V (Maximum external power supply voltage) ; (3) Ambient operating temperature: 0°C (32°F) min, 70°C (158°F) max; (4) Storage temperature: -20 to +125°C (-4°F to +125°F) .
Features
GDS1110AB features: (1) High performance; (2) Low power (normal mode) ; (3) Integrated clock generation; (4) Power-management features; (5) Big and little endian operating modes; (6) 3.3-V I/O interface; (7) Write buffer; (8) 256 mini-ball grid array (mBGA) .

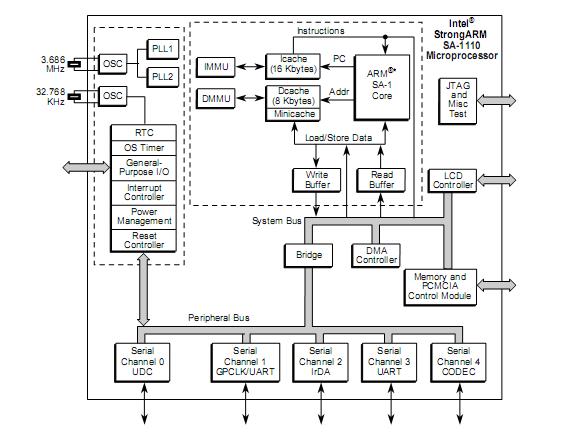

Diagrams
