Product Summary
The GDS1110BDE is a general-purpose, 32-bit RISC microprocessor with a 16 Kbyte instruction cache (Icache) , an 8 Kbyte write-back data cache (Dcache) , a minicache, a write buffer, a read buffer, an MMU, an LCD controller, and serial I/O combined in a single component. The GDS1110BDE provides portable applications with high-end computing performance without requiring users to sacrifice available battery time.
Parametrics
GDS1110BDE absolute maximum ratings: (1) VDD: 1.47V (Minimum internal power supply voltage) , 1.55V (Nominal internal power supply voltage) , 1.63V ( Maximum internal power supply voltage) ; (2) VDDX: 3V (Minimum external power supply voltage) , 3.3V (Nominal external power supply voltage) , 3.6V (Maximum external power supply voltage) ; (3) Ambient operating temperature: 0 to 70°C; (4) Storage temperature: -20 to +125°C.
Features
GDS1110BDE features: (1) High performance; (2)Low power (normal mode) ; (3) Integrated clock generation; (4) 3.3-V I/O interface; (5) Big and little endian operating modes; (6) 32-way set-associative caches.

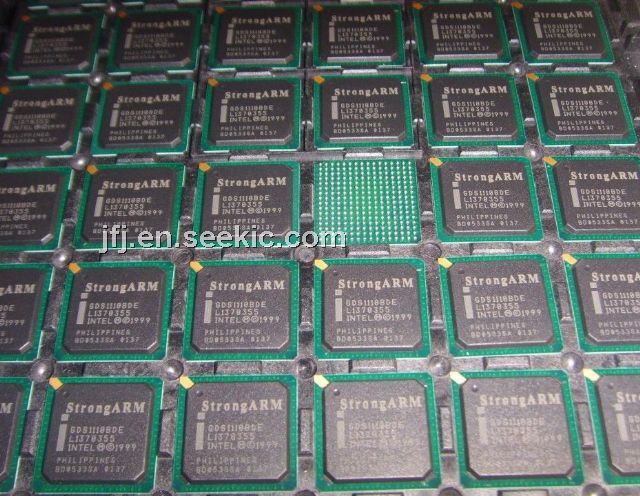

Diagrams
