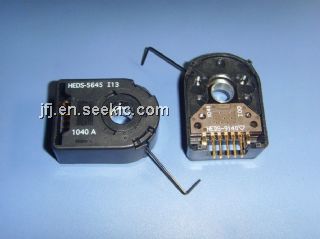

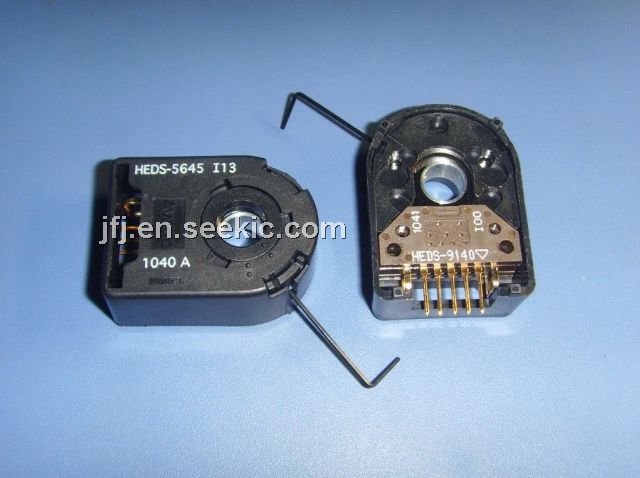

HEDS-5645#I13

incremental encoder, 5mA, 7V, ZIP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $18.00~18.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 263 :	18.00 / Piece

PartNumber:: HEDS-5645#I13

Brand:: AVAGO TECHNOLOGIES LIMITED - Avago | Pack: ZIP | D/C: 10+

Availability:: Supply Ability: 0/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Helen Li's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-04-21

From Other Seller

Part Number:HEDS-5645#I13
US $18.00 - 18.00
Quantity:

piece

Product Summary

The HEDS-5645#I13 is a high performance, low cost, two and three channel optical incremental encoder. The HEDS-5645#I13 emphasizes high reliability, high resolution, and easy assembly. The HEDS-5645#I13 provides motion detection at a low cost, making them ideal for high volume applications. Typical applications of the HEDS-5645#I13 include printers, plotters, tape drives,positioning tables, and automatic handlers.

Parametrics

HEDS-5645#I13 absolute maximum ratings: (1) Storage Temperature, Ts: -40 to 100°C; (2) Operating Temperature, TA: -40 to 100°C; (3) Supply Voltage, Vcc: -0.5 to 7V; (4) Output Voltage, Vo: -0.5V to Vcc; (5) Output Current per Channel, IOUT: -1.0mA to 5mA; (6) Vibration: 20g, 5 to 1000 Hz; (7) Shaft Eccentricity Plus Radial Play: 0.1 mm (0.004 in.) TIR; (8) Velocity: 30,000 RPM.

Features

HEDS-5645#I13 features: (1) Two channel quadrature output with optional index pulse; (2) Quick and easy assembly; (3) No signal adjustment required; (4) External mounting ears available; (5) Resolutions up to 1024 counts per revolution; (6) Small size; (7) -40 to 100°C operating temperature; (8) TTL compatible; (9) Single 5 V supply.
