Product Summary
The HM5165165FTT-6 is a 64M-bit dynamic RAMs organized as 4,194,304 word×16-bit. The HM5165165FTT-6 realized high performance and low power by employing CMOS process technology. The HM5165165FTT-6 offers Extended Data Out (EDO) Page Mode as a high speed access mode.
Parametrics
HM5165165FTT-6 absolute maximum ratings: (1) Terminal voltage on any pin relative to VSS, VT: -0.5 to Vcc +0.5V (≤4.6V (max) ) ; (2) Power supply voltage relative to Vss , Vcc: -0.5 to +4.6V; (3) Short circuit output current IOUT: 50mA; (4) Power dissipation PT: 1.0W; (5) Storage temperature Tstg: -55 to +125°C.
Features
HM5165165FTT-6 features: (1) Single 3.3 V supply: 3.3 V±0.3V; (2) Access time: 50ns/60ns (max) ; (3) EDO page mode capability; (4) Refresh cycles; (5) 4 variations of refresh; (6) Battery backup operation (L-version)

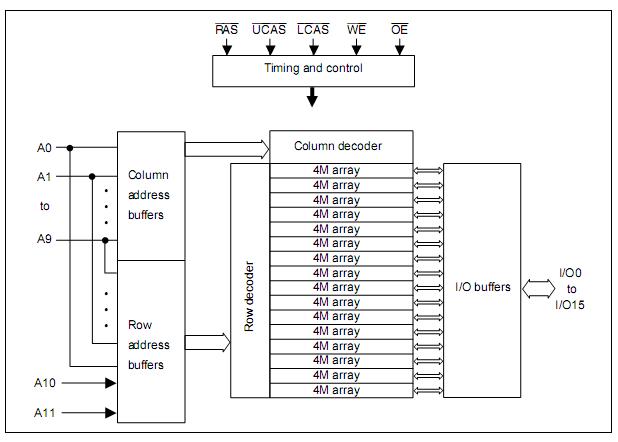

Diagrams
