Product Summary
The ISPLSI2032A-110LT44 is a High Density Programmable logic device. The ISPLSI2032A-110LT44 contains 32 registers, 32 Universal I/O pins, two Dedicated Input Pins, three edicated Clock Input Pins, one dedicated Global OE input pin and a Global Routing Pool (GRP) . All of the GLB outputs are brought back into the GRP so that they can be connected to the inputs of any GLB on the ISPLSI2032A-110LT44.
Parametrics
ISPLSI2032A-110LT44 absolute maximum ratings: (1) Supply Voltage Vcc: -0.5 to +7.0V; (2) Input Voltage Applied: -2.5 to Vcc +1.0V; (3) Off-State Output Voltage Applied: -2.5 to Vcc +1.0V; (4) Storage Temperature: -65 to +150°C; (5) Case Temp. with Power Applied: -55 to 125°C; (6) Max. Junction (Tj) with Power Applied: 150°C.
Features
ISPLSI2032A-110LT44 features: (1) high density programmable logic; (2) high perforamnce ECMOS technology; (3) in-system programmable; (4) offers the ease of use and fast systen of field programmable gate arrays.

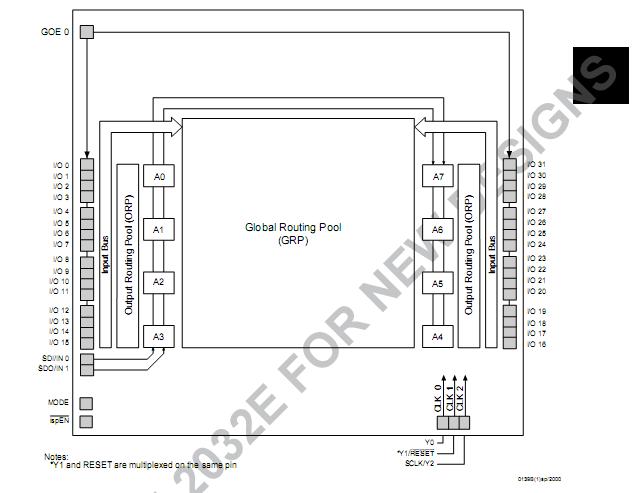

Diagrams
