Product Summary

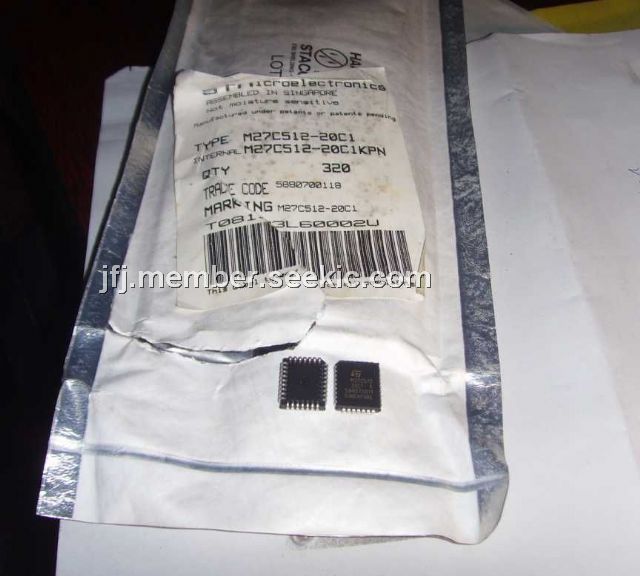

The M27C512-20C1 is a 512 Kbit EPROM offered in the two ranges UV (ultra violet erase) and OTP (one time programmable). The M27C512-20C1 is ideally suited for applications where fast turn-around and pattern experimentation are important requirements and is organized as 65536 by 8 bits.
Parametrics
M27C512-20C1 absolute maximum ratings: (1)TA Ambient Operating Temperature: –40 to 125 ℃; (2)TBIAS Temperature Under Bias: –50 to 125 ℃; (3)TSTG Storage Temperature: –65 to 150 ℃; (4)Input or Output Voltage: –2 to 7 V; (5)VCC Supply Voltage: –2 to 7 V; (6)A9 Voltage: –2 to 13.5 V; (7)VPP Program Supply Voltage: –2 to 14 V.
Features
M27C512-20C1 features: (1)5V ± 10% supply voltage in read operation; (2)Access time: 45ns; (3)Low power “CMOS” consumption: Active Current 30mA. standby current 100μA; (4)Programming voltage: 12.75V ± 0.25V; (5)Programming times of around 6sec.; (6)Electronic signature. manufacturer code: 20h. Device Code: 3Dh; (7)Packages lead-free versions.
Diagrams
 |
