Product Summary
The ISPLSI2064VE-135LT44 is a High Density Programmable Logic Device available in 64 and 32 I/O-pin versions. The ISPLSI2064VE-135LT44 contains 64 Registers, four Dedicated Input pins, three Dedicated Clock Input pins, two dedicated Global OE input pins and a Global Routing Pool (GRP) . The basic unit of logic on the ISPLSI2064VE-135LT44 is the Generic Logic Block (GLB) .
Parametrics
ISPLSI2064VE-135LT44 absolute maximum ratings: (1) Supply Voltage Vcc: -0.5 to +5.4V; (2) Input Voltage Applied: -0.5 to +5.6V; (3) Off-State Output Voltage Applied: -0.5 to +5.6V; (4) Storage Temperature: -65 to +150°C; (5) Case Temp. with Power Applied: -55 to 125°C; (6) Max. Junction Temp. (Tj) with Power Applied: -55 to 125°C.
Features
ISPLSI2064VE-135LT44 features: (1) superfast high density programmable logic; (2) 3.3V low voltahe 2064 architecture; (3) high-performance ECMOS technology; (4) in-system programmable; (5) 100% IEEE 114.91 boundary sacn testable; (6) ispDesignEXPERT-logic compiler and complete ISP device design systems from HDL synthesis through in-system programming.

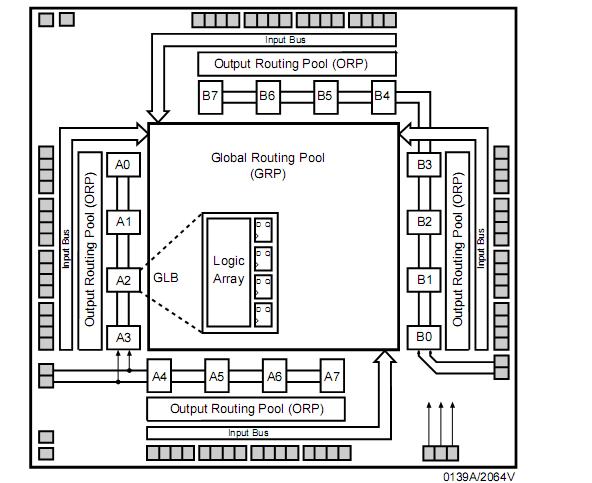

Diagrams
