Product Summary

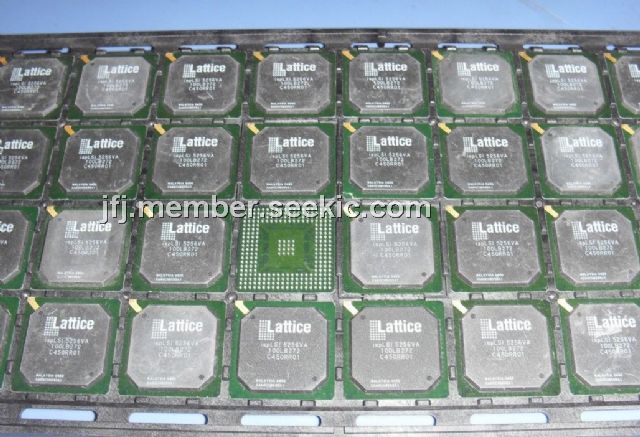

The ISPLSI5256VA100LB272 is an In-System Programmable High Density Logic Device based on Generic Logic Blocks (GLBs) of 32 registered macrocells and a single Global Routing Pool (GRP) structure interconnecting the GLBs.
Parametrics
ISPLSI5256VA100LB272 absolute maximum ratings: (1)Supply Voltage Vcc: -0.5 to +5.4V; (2)Input Voltage Applied: -0.5 to +5.6V; (3)Tri-Stated Output Voltage Applied: -0.5 to +5.6V; (4)Storage Temperature: -65 to 150℃; (5)Case Temp. with Power Applied: -55 to 125℃; (6)Max. Junction Temp. (TJ) with Power Applied: 150℃.
Features
ISPLSI5256VA100LB272 features: (1)3.3V Power Supply; (2)User Selectable 3.3V/2.5V I/O; (3)12000 PLD Gates / 256 Macrocells; (4)Up to 192 I/O Pins; (5)256 Registers; (6)High-Speed Global Interconnect; (7)SuperWIDE 32 Generic Logic Block (GLB) Size for Optimum Performance; (8)SuperWIDE Input Gating (68 Inputs) for Fast Counters, State Machines, Address Decoders, etc; (9)PCB Efficient Ball Grid Array (BGA) Package Options; (10)Interfaces with Standard 5V TTL Devices.
Diagrams
 |
