Product Summary
The K6R1008V1C-JC10 is a 3.3V PC 99, PC2001, and ACPI 2.0 compliant Super I/O Controller. The K6R1008V1C-JC10 implements the LPC interface, a pin reduced ISA interface which provides the same or better performance as the ISA/X-bus with a substantial savings in pins used. The K6R1008V1C-JC10 incorporates a 16C550A compatible UART and one Multi-Mode parallel port with ChiProtect circuitry plus EPP and ECP support.
Features
K6R1008V1C-JC10 features: (1) 3.3 Volt Operation (5V tolerant) ; (2) Programmable Wakeup Event Interface (IO_PME# Pin) ; (3) SMI Support (IO_SMI# Pin) ; (4) GPIOs (13) ; (5) Two IRQ Input Pins; (6) 56-pin QFN Lead-free RoHS Compliant package; (7) Multi-Mode Parallel Port with ChiProtect; (8) LPC Bus Host Interface.

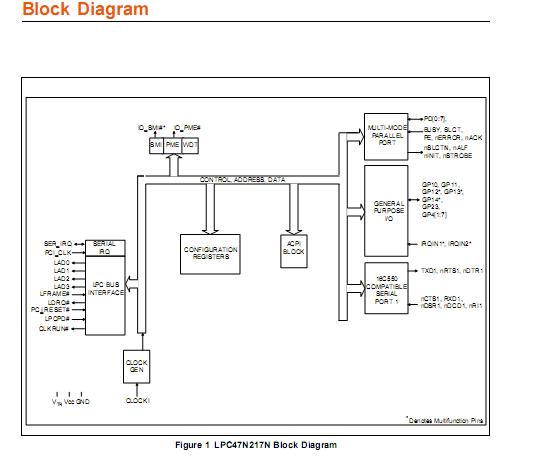

Diagrams
