Product Summary
The LC5512MV-75F484 is an eXpanded Programmable Logic Device (XPLD). The device extends the capability of Lattice’s popular SuperWIDE ispMACH 5000 architecture by providing flexible memory capability. The LC5512MV-75F484 supports single- or dual-port SRAM, FIFO, and ternary CAM operation. Extra logic has also been included to allow efficient implementation of arithmetic functions.
Parametrics
LC5512MV-75F484 absolute maximum ratings: (1)Supply Voltage (VCC): -0.5 to 5.5V; (2)PLL Supply Voltage (VCCP): -0.5 to 5.5V; (3)Output Supply Voltage (VCCO): -0.5 to 4.5V; (4)IEEE 1149.1 TAP Supply Voltage (VCCJ): -0.5 to 4.5V; (5)Input Voltage Applied: -0.5 to 5.5V; (6)Storage Temperature: -65 to 150℃; (7)Junction Temperature (TJ) with Power Applied: -55 to 150℃.
Features
LC5512MV-75F484 features: (1)SuperWIDE logic (up to 136 inputs); (2)Arithmetic capability; (3)Single- or Dual-port SRAM; (4)FIFO; (5)Ternary CAM; (6)Instant-on capability; (7)Single chip convenience; (8)In-System Programmable via IEEE 1532 Interface; (9)Infinitely reconfigurable via IEEE 1532 or sysCONFIG microprocessor interface; (10)Design security.

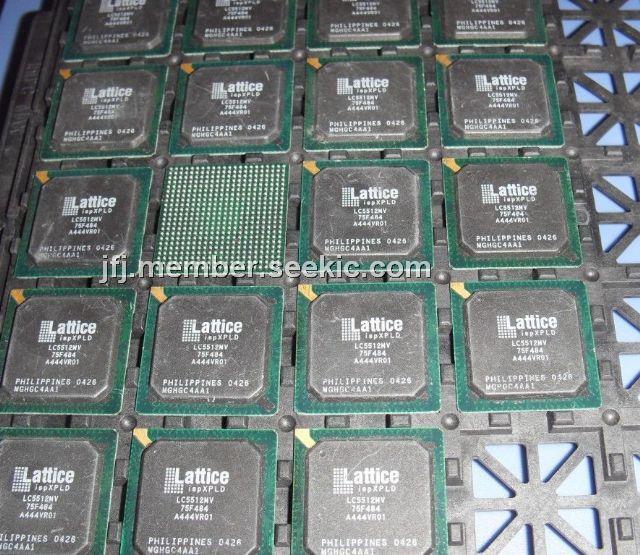

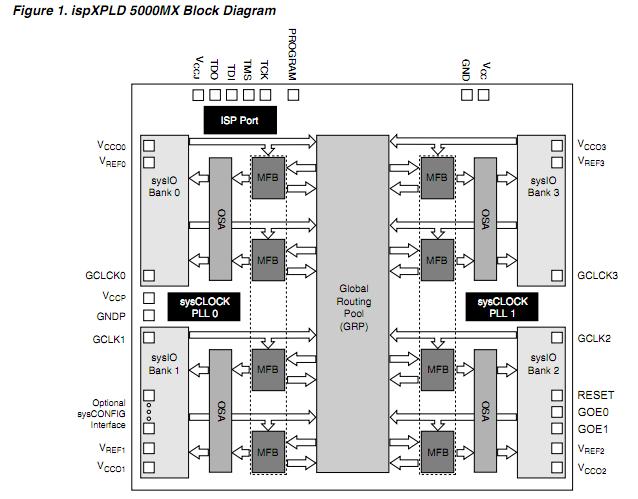

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LC5512MV-75F484C |
Lattice |
CPLD - Complex Programmable Logic Devices PROGRAM EXPANDED LOG |
Data Sheet |
|
|
||||||||||
|
LC5512MV-75F484I |
Lattice |
CPLD - Complex Programmable Logic Devices PROGRAM EXPANDED LOG |
Data Sheet |
|
|
||||||||||
