Product Summary

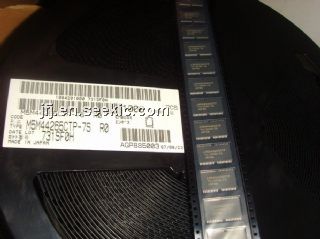

The M5M44265CTP-7S is a EDO (hyper page mode) 4194304-bit (262144-word by 16-bit) dynamic RAM. This is a family of 262144-word by 16-bit dynamic RAMs with Hyper Page mode fuction, fabricated with the high performance CMOS process, and is ideal for the buffer memory systems of personal computer graphics and HDD where high speed, low power dissipation, and low costs are essential. The use of double-layer metalization process technology and a single-transistor dynamic storage stacked capacitor cell provide high circuit density at reduced costs. Multiplexed address inputs permit both a reduction in pins and an increase in system densities. Self or extended refresh current is low enough for battery back-up application.
Parametrics
M5M44265CTP-7S absolute maximum ratings: (1)Supply voltage: -1 to 7V; (2)Input voltage: -1 to 7V; (3)Output voltage: -1 to 7V; (4)Output current: 50mA; (5)Power dissipation: 1000mW; (6)Operating temperature: 0~70°C; (7)Storage temperature: -65~150°C.
Features
M5M44265CTP-7S features: (1)Standard 40pin SOJ, 44 pin TSOP (II); (2)Single 5V±10% supply; (3)Low stand-by power dissipation; (4)Operating power dissipation; (5)Self refresh capability; (6)Extended refresh capability; (7)Hyper-page mode (512-column random access), Read-modifywrite, RAS-only refresh, CAS before RAS refresh, Hidden refresh capabilities; (8)512 refresh cycles every 8.2ms (A0~A8); (9)512 refresh cycles every 128ms (A0~A8); (10)Byte or word control for Read/Write operation.
Diagrams
