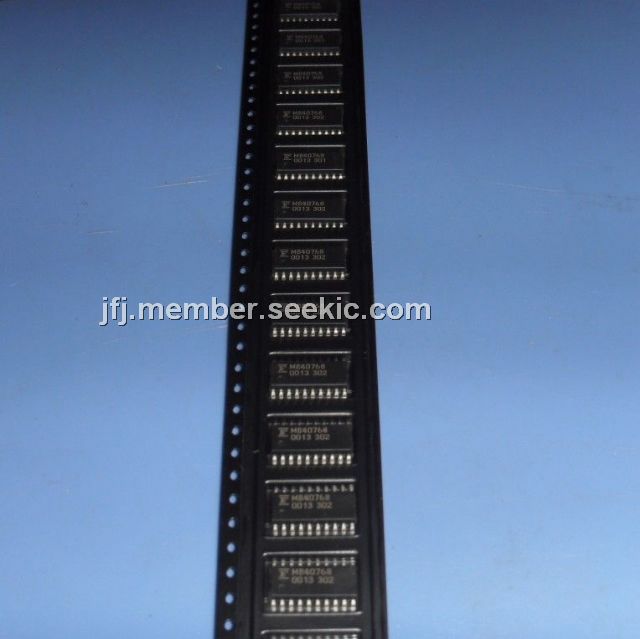

MB40768

low-power, high-speed 8-bit D/A converter, SOP20, +5 V single power supply

Rated 5 Rating 5 | reviews | Write a review

Price:: US $3.78~3.85 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $3.78~3.85

PartNumber:: MB40768

Brand:: Fujitsu Media Devices Limited - FMDL | Pack: SOP | D/C: 09+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Helen Li's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-10-31

From Other Seller

Part Number:MB40768
US $3.78 - 3.85
iphone5 data cable

US $4.00 - 5.00 / Piece
(0) Remove
HEF4051BT

US $0.15 - 1.20 / Piece
(0) Remove
Quantity:

piece

Product Summary

The MB40768 is a low-power and high-speed 8-bit D/A converter. The digital input is TTL compatible and the analog output voltage is 3 to 5 V. Maximum conversion speed is 60MHz. The internal reference voltage provided has two types of resistor division scheme and band-gap reference scheme; the external reference voltage may also be used. The MB40768 is suitable for high-definition TV or VCR application.

Parametrics

MB40768 absolute maximum ratings: (1)Analog power supply voltage:–0.5 to +7.0V; (2)Digital power supply voltage:–0.5 to +7.0V; (3)Power supply voltage difference:1.5V; (4)Digital signal input voltage:–0.5 to +7.0V; (5)Storage temperature:–55℃ to +125℃.

Features

MB40768 features: (1)Resolution: 8 bits; (2)Conversion characteristics: Maximum conversion rate: 60 MSPS(min.); (3)Linearity error: ±0.2 % (max.); (4)I/O: Digital input voltage: TTL level; (5)Analog output voltage: 2VP-P (3 to 5 V); (6)Reference voltage: VROUT1: Resistor division circuit(0.6 * VCCA); (7)VROUT2: Band-gap reference circuit (VCCA - 2 V); (8)Power supply voltage: +5 V single power supply; (9)Power consumption: 160 mW (typical value for the analog output voltage of 2 VP-P), 120 mW (typical value for the analog output voltage of 1 VP-P).
