Product Summary

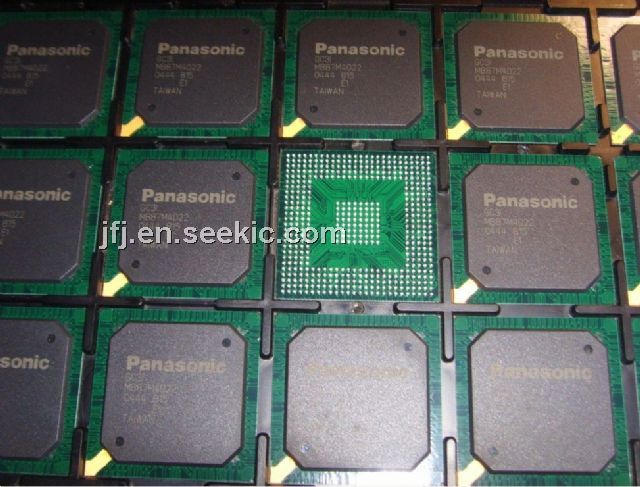

The MB87M4022 is an integrated set-top-box decoder. As a major component of a digital video broadcast (DVB) set-top-box or IDTV this device uses Fujitsu’s industry-leading Cx81 CMOS technology (0.18μm). It incorporates an ARC Tangent A4 RISC core (@130MHz), two transport stream demultiplexers with integrated DVB descramblers, a PAL/NTSC digital video encoder and a display controller, which overlays up to four layers of OSD. The MB87M4022 consists of a shared memory interface for CPU and for MPEG decoding.

Parametrics

MB87M4022 absolute maximum ratings: (1)crystal: 27.0MHz; (2)Ambient Temperature Range (Std Pkg): 0℃ to +70℃; (3)1.8 volt device with 3.3 volt I/O; (4)Power consumption: typ. 800mW.

Features

MB87M4022 features: (1)MPEG2 video ISO/IEC 13818-2 (MP@ML...SP@ML); (2)MPEG audio layer 1/2; (3)32-bit RISC CPU (ARC Tangent A4 @130MHz); (4)4K I-cache / 2K D-cache; (5)Three timers / watchdog / power-down mode; (6)Shared memory interface (SDRAM, 16/32 bit data), 64Mbit to 1Gbit ; (7)Universal processor interface (IDE, NAND/NOR FLASH & Common Interface); (8)Two transport stream decoders (decoding/recording) including DVB descrambler; (9)Flexible MPEG video resizing (factor 1/16 to 2); (10)Display controller with up to four true colour graphic or CLUT layers; (11)Teletext / WSS / CC / VBID insertion; (12)PAL/NTSC digital encoder; (13)RGB De-matrix (RGB or YCrCb output); (14)Control of brightness, contrast and colour saturation of RGB and YCrCb output; (15)5 video DAC’s @ 10bit; (16)ITU-R 656 video input/output (shared with TS2 input); (17)S/P DIF output for PCM/AC3/MPEG; (18)UART / Smart Card IF / I2C / GPIO; (19)7-segment LED controller for 4 digits; (20)Infra Red receiver / transmitter; (21)PWM Output; (22)On-chip DPLL, requiring only 27.0MHz crystal; (23)Bootable from NOR Flash or I2C; (24)FPT-208P-M06 (LQFP-Package); (25)Ambient Temperature Range (Std Pkg): 0oC to +70oC ; (26)Advanced Technology: Fujitsu CMOS Cx81 (0.18μm); (27)1.8 volt device with 3.3 volt I/O; (28)Power consumption: typ. 800mW.

Diagrams

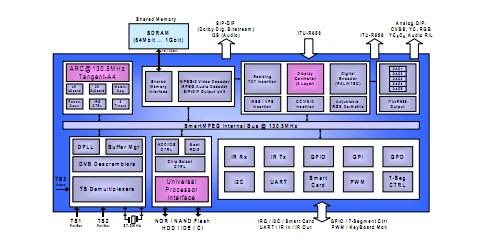

MB87M4022 block diagram
