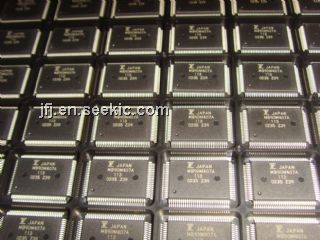

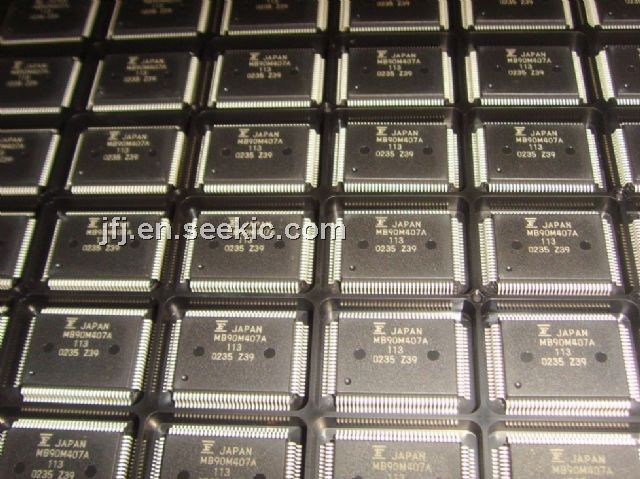

Product Summary
The MB90M407APF-G-604-BND is a general-purpose 16-bit microcontroller, developed for applications requiring fluorescent display tube panel control. The MB90M407APF-G-604-BND is equipped with 60 highly voltage-resistant output pins, needed for fluorescent display control. The command structure inherits the same AT architecture as the F2MC-8L and F2MC-16L, in order to provide enhanced C-language support, improved extended/signed multiplication/division instructions in addressing mode, and enhanced bit processing. In addition, an onboard 32-bit accumulator allows long word processing.
Parametrics
MB90M407APF-G-604-BND absolute maximum ratings: (1)Power Supply Voltage, VCC-CPU: VSS -0.3 to VSS + 4.0 V; VDD-FIP: VSS -0.3 to VSS + 4.0 V; AVCC: VSS -0.3 to VSS + 4.0 V; VKK: VCC -45 to VCC + 0.3 V; (2)Input Voltage, VI: VSS -0.3 VSS + 4.0V; VI2 VSS -0.3 VSS + 5.5V; (3)Output Voltage, VO: VSS -0.3 to VSS + 4.0 V; VO2: VSS -0.3 to VSS + 5.5 V(open drain output); (4)“L” Level Maximum Output Current, IOL: 15 mA.
Features
MB90M407APF-G-604-BND features: (1)Internal PLL clock multiplication circuit; (2)Oscillation clock, 1/2 main oscillation clock; 1×to 4×PLL oscillation clock (2 MHz to 16 MHz at 4 MHz oscillation), can be set from machine clock; (3)Minimum instruction execution time: 62.5 ns (operating at 4 MHz oscillation, 4 × PLL clock, VCC = 3 V); (4)Oscillation clock can generate 1/32, 1/64, 1/128, and 1/256 external clock outputs; (5)Maximum memory space: 16 Mbytes; (6)Can also use 24-bit addressing.

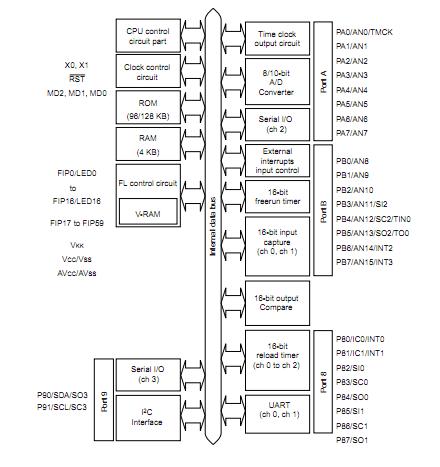

Diagrams
