Product Summary
The MBM29DL323BD-90PBT-FJ is a 32M-bit, 3.0 V-only Flash memory organized as 4M bytes of 8 bits each or 2M words of 16 bits each. The MBM29DL323BD-90PBT-FJ is offered in a 48-pin TSOP(I) and FBGA Package. The MBM29DL323BD-90PBT-FJ is designed to be programmed in-system with the standard system 3.0 V VCC supply. 12.0 V VPP and 5.0 V VCC are not required for write or erase operations. The device can also be reprogrammed in standard EPROM programmers.
Parametrics
MBM29DL323BD-90PBT-FJ absolute maximum ratings: (1)Storage Temperature, Tstg: -55 to +125℃; (2)Ambient Temperature with Power Applied, TA: -40 to +85℃; (3)Voltage with Respect to Ground All pins except A9, OE, RESET, VIN, VOUT: -0.5 to VCC+0.5 V; (4)Power Supply Voltage, VCC: -0.5 to +4.0 V; (5)A9, OE, and RESET(Note 2), VIN: -0.5 to +13.0 V; (6)WP/ACC, VIN: -0.5 to +10.5 V.
Features
MBM29DL323BD-90PBT-FJ features: (1)0.33 μm Process Technology; (2)Simultaneous Read/Write operations (dual bank), Multiple devices available with different bank sizes (Refer to Table 1); Host system can program or erase in one bank, then immediately and simultaneously read from the other bank; Zero latency between read and write operations; Read-while-erase; Read-while-program; (3)Single 3.0 V read, program, and erase Minimizes system level power requirements.

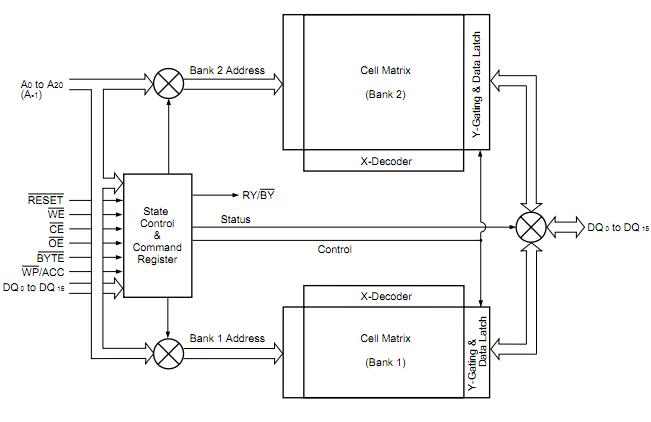

Diagrams
