Product Summary
The MBM29LV160TE-90PBT is a 16M-bit, 3.0 V-only Flash memory organized as 2M bytes of 8 bits each or 1M words of 16 bits each. The MBM29LV160TE-90PBT is offered in a 48-pin TSOP (I), 48-pin CSOP and 48-ball FBGA packages. The device is designed to be programmed in-system with the standard system 3.0 V VCC supply. 12.0V VPP and 5.0 V VCC are not required for write or erase operations. The device can also be reprogrammed in standard EPROM programmers.
Parametrics
MBM29LV160TE-90PBT absolute maximum ratings: (1)Storage Temperature Tstg: -55 to +125℃; (2)Ambient Temperature with Power Applied TA: -40 to +85℃; (3)Voltage with Respect to Ground All pins except A9, OE, RESET (Note 1), VIN, VOUT: -0.5 to VCC+0.5 V; (4)Power Supply Voltage, VCC: -0.5 to +5.5 V; (5)A9, OE, and RESET, VIN: -0.5 to +13.0 V.
Features
MBM29LV160TE-90PBT features: (1)0.23 μm Process Technology; (2)Single 3.0 V read, program and erase Minimizes system level power requirements; (3)Compatible with JEDEC-standard commands Uses same software commands as E2PROMs; (4)Compatible with JEDEC-standard world-wide pinouts 48-pin TSOP (I) (Package suffix: TN-Normal Bend Type, TR-Reversed Bend Type); (5)48-pin CSOP (Package suffix: PCV); 48-ball FBGA (Package suffix: PBT); (6)Minimum 100,000 program/erase cycles; (7)High performance, 70 ns maximum access time.

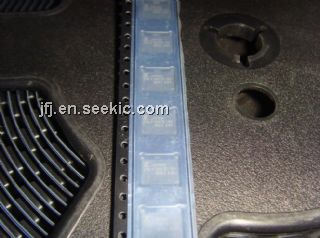

Diagrams
