Product Summary

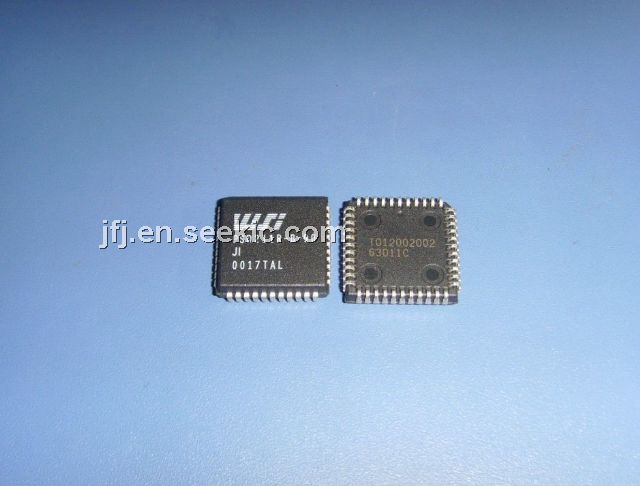

The PSD211R-B-90JI is a low cost field programmable microcontroller peripheral. It integrates high-performance and user-configurable blocks of EPROM and programmable logic into one part. The PSD211R-B-90JI products also provide a powerful microcontroller interface that eliminates the need for external glue logic. The part integration, small form factor, low power consumption, and ease of use make it the ideal part for interfacing to virtually any microcontroller.

Parametrics

PSD211R-B-90JI absolute maximum ratings: (1)Storage Temperature: – 65 + 150°C; (2)Voltage on any Pin: – 0.6 + 7 V; (3)Programming Supply Voltage: – 0.6 + 14 V; (4)Supply Voltage: – 0.6 + 7 V; (5)ESD Protection: >2000 V.

Features

PSD211R-B-90JI features: (1)Single Supply Voltage: – 5 V±10% for PSD211R and ZPSD211R – 2.7 to 5.5 V for ZPSD211RV; (2)Up to 256 Kbit of EPROM; (3)Input Latches; (4)Programmable I/O ports; (5)Programmable Security.

Diagrams

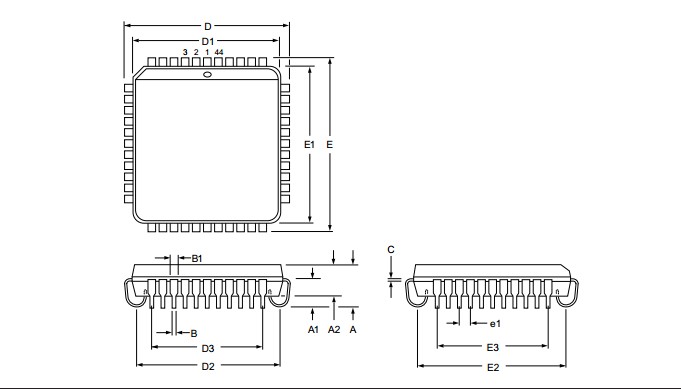

PSD211R-B-90JI package dimensions
