Product Summary

The R2A30406SP is a 4-Channel Motor Driver IC that incorporates driver circuits suitable for the motors of digital cameras. By adopting an ultra-fine CMOS process, H bridge 4-ch of a full-swing drive was built in one chip. It is considering as the high composition flexibility to realize low power consumption and miniaturization. The applications of the R2A30406SP include Motor driver for digital cameras, digital video camera, etc.

Parametrics

R2A30406SP absolute maximum ratings: (1)Power-supply voltage, VCC: 6.5V; (2)Power-supply voltage, VM: 6.5V; (3)Direct current (1ch~4ch), Iod: ±400mA/ch; (4)Instantaneous output current(1ch~4ch), Iop: ±600mA/ch; (5)Allowable power consumption, Pd: 500mW; (6)Thermal derating ratio Kθ: -4.0mW/℃; (7)Ambient operating temperature Topr; (8)Max. junction temperature, Tj: 150℃; (9)Applied input voltages, Vin: -0.5~VCC+0.5V; (10)Ambient operating temperature, Topr: -25~85℃; (11)Storage temperature, Tstg: -40~150℃.

Features

R2A30406SP features: (1)All bridges can be controlled independently; (2)An ultra-fine CMOS process has been adopted for low power consumption in a design with no charge-pump; (3)Built-in H bridge of a full-swing drive 4 circuit; (4)Built-in low-voltage malfunction prevention circuit; (5)Power supply systems are all internally isolated and include a function to prevent reverse current between power supplies; (6)It is housed in a small package (24SSOP 6.5x6.4 mm t=1.0mm).

Diagrams

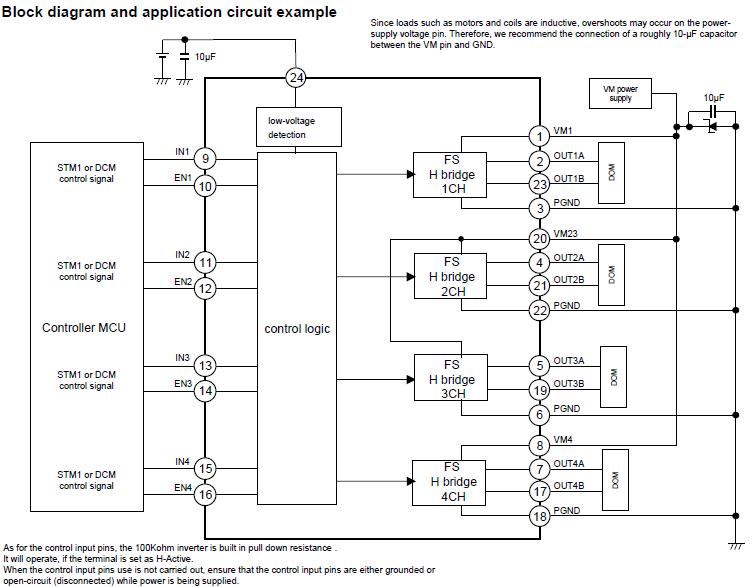

R2A30406SP block diagram
