Product Summary

The RT2790T LVDS & LVPECL FPGA terminator is designed for high performance termination of differential Input/Output signals on some of the most popular Field Programmable Gate Arrays (FPGAs). Both input (RX) and output (TX) termination is provided.

Parametrics

RT2790T absolute maximum ratings: (1)Operating Temperature Range: -55°C to +125°C; (2)Maximum Resistor Power: 0.068 Watts at 70°C; (3)Maximum Package Power: 1.0 Watts at 70°C.

Features

RT2790T features: ((1)Designed for termination of Xilinx and Altera FPGAs; (2)8 or 16 differential channels of termination provided in a single integrated package; (3)Excellent high frequency performance; (4)High density ceramic BGA package; (5)RoHS Compliant Designs Available; (6)Compatible with both lead and lead-free manufacturing processes.

Diagrams

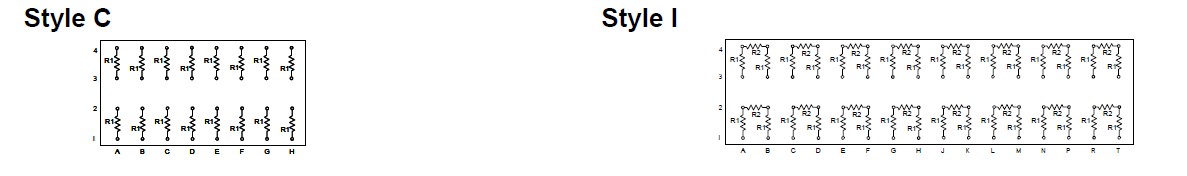

RT2790T pin connection
