Product Summary

The S29GL032A90TFIR30H is a 3.0-Volt single-power Flash memory manufactured using 200 nm MirrorBit technology. The S29GL032A90TFIR30H requires only a single 3.0-Volt power supply for both read and write functions. In addition to a VCC input, a high-voltage accelerated program (ACC) feature provides shorter programming times through increased current on the WP#/ACC input. This feature of the S29GL032A90TFIR30H is intended to facilitate factory throughput during system production, but may also be used in the field if desired.


Parametrics

S29GL032A90TFIR30H absolute maximum ratings: (1)Storage Temperature, Plastic Packages: –65°C to +150°C; (2)Ambient Temperature with Power Applied: –65°C to +125°C; (3)Voltage with Respect to Ground VCC: –0.5 V to +4.0 V, A9, OE#, ACC and RESET#: –0.5 V to +12.5 V, All other pins: –0.5 V to VCC+0.5 V; (4)Output Short Circuit Current: 200 mA.

Features

S29GL032A90TFIR30H features: (1)Single power supply operation; (2)Flexible sector architecture; (3)Compatibility with JEDEC standards; (4)100,000 erase cycles typical per sector; (5)20-year data retention typical.

Diagrams

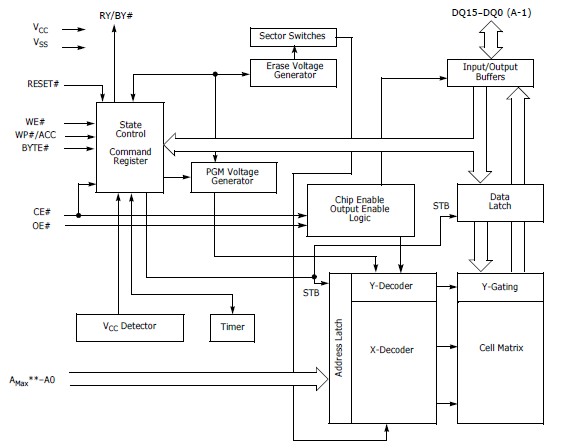

S29GL032A90TFIR30H pin connection
