Product Summary

The S87C198 is a 16-bit microcontroller architecture. The S87C198 provides a high performance processor along with low power consumption. To further reduce power requirements, the processor can be placed into Idle or Powerdown Mode. Four high-speed capture inputs are provided to record times when events occur. Six high-speed outputs are available for pulse or waveform generation. The high-speed output can also generate four software timers or start an A/D conversion. Events can be based on the timer or counter. Also provided on-chip are an A/D converter, serial port, watchdog timer and a pulse-width-modulated output signal.

Parametrics

S87C198 absolute maximum ratings: (1)Am－ient Temperature under Bias: －55　to 125°C; (2)Storage Temperature : －65°Cto 150°C; (3)Voltage on VPP or EA to VSS or ANGND : －0.3V to 13.0V; (4)Voltage on Any Other Pin to VSS : －0.5V to 7.0V; (5)Power Dissipation(1): 1.5W．

Features

S87C198 features: (1)8 Kbytes of On-Chip OTPROM or ROM; (2)232 Byte Register File; (3)Register-to-Register Architecture; (4)28 Interrupt Sources/16 Vectors; (5)1.75 ms 16 x 16 Multiply (16 MHz); (6)3.0 ms 32/16 Divide (16 MHz); (7)Powerdown and Idle Modes; (8)16-Bit Watchdog Timer; (9)8-Bit External Bus; (10)16 MHz Standard; (11)Full Duplex Serial Port; (12)High Speed I/O Subsystem; (13)16-Bit Timer; (14)16-Bit Counter; (15)Pulse-Width-Modulated Output; (16)Four 16-Bit Software Timers; (17)10-Bit A/D Converter with Sample/Hold; (18)Extended Temperature Available．

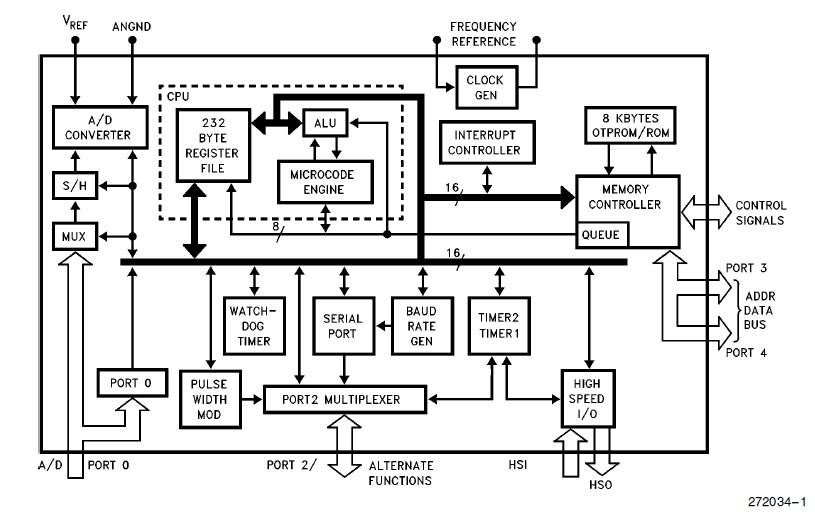

Diagrams

S87C198 pin connection
