Product Summary

The SN74LS07DRG4 is a HEX buffer/driver. It features high-voltage open-collector outputs to interface with high-level circuits or for driving high-current loads. The SN74LS07DRG4 is also characterized for use as buffers for driving TTL inputs. The device has a rated output voltage of 30 V.

Parametrics

SN74LS07DRG4 absolute maximum ratings: (1)Supply voltage:7V; (2)Input voltage:7V; (3)Output voltage:30V; (4)Package thermal impedance:86℃/W; (5)Storage temperature range:-65℃ to 150℃.

Features

SN74LS07DRG4 features: (1)Convert TTL Voltage Levels to MOS Levels; (2)High Sink-Current Capability; (3)Input Clamping Diodes Simplify System Design; (4)Open-Collector Driver for Indicator Lamps and Relays.

Diagrams

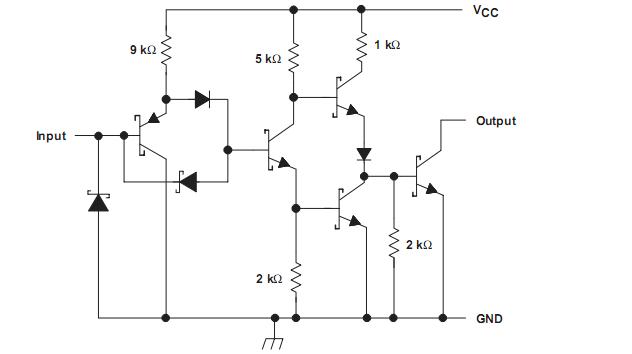

SN74LS07DRG4 circuit diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

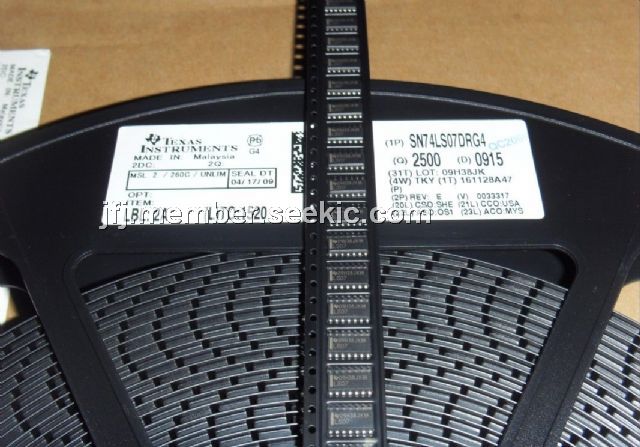

SN74LS07DRG4
SN74LS07DRG4
Texas Instruments
Buffers & Line Drivers Hex Inverter Drivers
Data Sheet
0-1750: $0.23
1750-2000: $0.21
2000-2500: $0.21
2500-5000: $0.20
