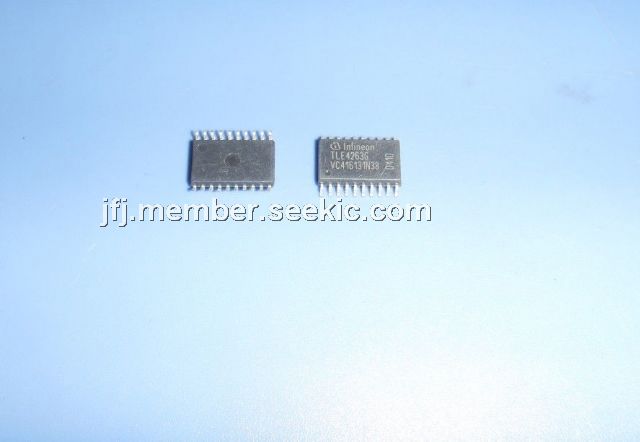

Product Summary

The TLE4263G is a 5-V Low Drop Voltage Regulator. The maximum input voltage is 45 V. The maximum output current is more than 200 mA. The TLE4263G is short-circuit proof and incorporates temperature protection which turns off the IC at overtemperature.

Parametrics

TLE4263G absolute maximum ratings: (1)Input I, Input voltage, VI: -42 to 45V; (2)Reset Output RO, Voltage, VRO: -0.3 to 42V; (3)Reset Input RADJ, Voltage, VRADJ: -0.3 to 6 V; (4)Reset Delay D, Voltage, VD: -0.3 to 42V; (5)Output Q, Voltage, VQ: -5.25V; (6)Inhibit INH, Voltage, VINH: -42 to 45 V; (7)Ground GND, Current, IGND: -0.5A; (8)Temperature, Junction temperature, Tj: 150℃; Storage temperature, Tstg: -50 to 150℃; (9)Operating Range, Input voltage, VI: 5.2 to 45V; (10)Junction temperature, Tj: -40 to 150℃.

Features

TLE4263G features: (1)Output voltage tolerance ≤ ±2%; (2)200 mA output current capability; (3)Low-drop voltage; (4)Very low standby current consumption; (5)Overtemperature protection; (6)Reverse polarity protection; (7)Short-circuit proof; (8)Adjustable reset threshold; (9)Watchdog; (10)Wide temperature range; (11)Suitable for use in automotive electronics; (12)Green Product (RoHS compliant); (13)AEC Qualified.

Diagrams

TLE4263G block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
TLE4263G
TLE4263G
Infineon Technologies
Low Dropout (LDO) Regulators LOW DROPOUT REGULATOR
Data Sheet
0-610: $1.04
610-1000: $0.88
1000-2000: $0.83
2000-5000: $0.80
TLE4263GM
TLE4263GM
Infineon Technologies
Low Dropout (LDO) Regulators 5V LW Drop VOLT REGULATOR 200mA
Data Sheet
0-1740: $0.71
1740-2500: $0.66
2500-5000: $0.64
5000-10000: $0.61
TLE4263GXT
TLE4263GXT
Infineon Technologies
Low Dropout (LDO) Regulators 5-V Low Drop Fixed Voltage Regulator
Data Sheet
0-450: $1.18
450-500: $0.92
500-1000: $0.76
1000-2000: $0.71
TLE4263GS
TLE4263GS
Infineon Technologies
Low Dropout (LDO) Regulators LOW DROPOUT REGULATOR
Data Sheet
0-1730: $0.64
1730-2500: $0.60
2500-5000: $0.58
5000-10000: $0.55
