Product Summary
This TLE4269GM is a voltage regulator with a fixed 5-V output, e.g. in a P-DSO-8-1 package. The maximum operating voltage is 45 V. The output is able to drive a 150 mA load. It is short circuit protected and the thermal shutdown switches the output off if the junction temperature is in excess of 150 ℃.
Parametrics
TLE4269GM absolute maximum ratings: (1)Voltage: -0.3 V min and 7 V max; (2)Current: internal limited; (3)Output voltage: -0.3 V min and 7 V max; (4)Output current: -5 mA min; (5)Junction temperature: 150 ℃ max; (6)Storage temperature: -50 to 150 ℃.
Features
TLE4269GM features: (1)Output voltage tolerance ≤ ± 2 %; (2)Very low current consumption; (3)Early warning; (4)Reset output low doown to VQ = 1 V; (5)Overtemperature protection; (6)Reverse polarity proof; (7)Settable reset threshold; (8)Very low drop voltage; (9)Wide temperature range; (10)Integrated pull up resistor at logic outputs.

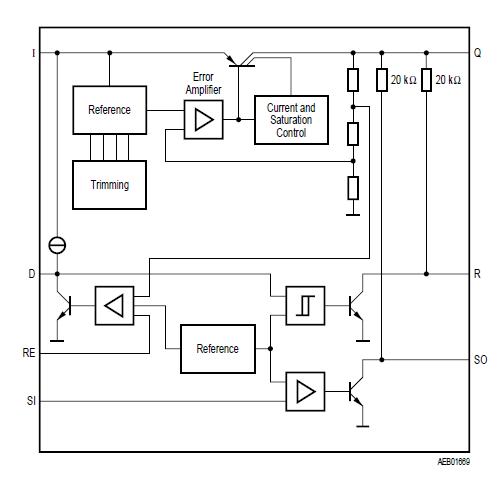

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 TLE4269GM |
Infineon Technologies |
Low Dropout (LDO) Regulators LW Drop Fixed VOLT REGULATOR 200mA 5V |
Data Sheet |
|
|
||||||||||||
