Product Summary

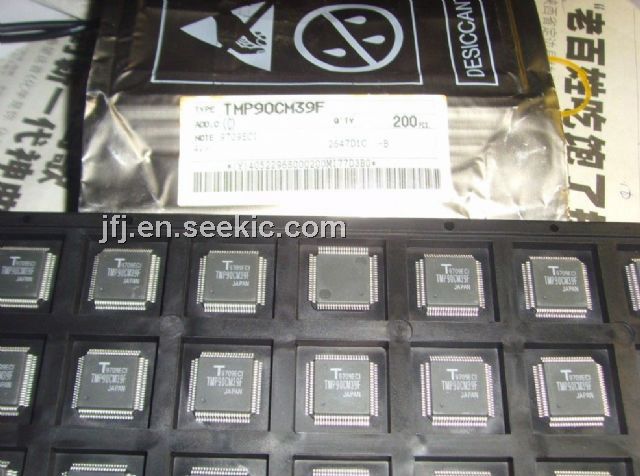

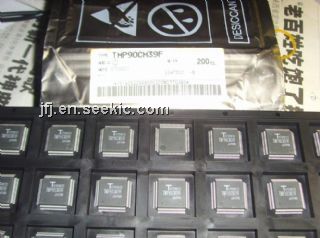

The TMP90CM39F is an 8-bit microcontroller.
Parametrics
TMP90CM39F absolute maximum ratings:(1)Supply voltage: -0.5 to 6.5V; (2)Input voltage: -0.5 to Vcc+0.5V; (3)Output voltage: -0.5 to Vcc+0.5V; (4)Power dissipation(Ta=70℃): 700mW; (5)Soldering temperature: 260℃; (6)Storage temperature: -65 to +150℃; (7)Operating temperature: -20 to +70℃.
Features
TMP90CM39F features: (1)Efficiently systematized instructions; (2)Minimum instruction execution time; (3)Internal ROM: 40 K bytes; (4)Internal RAM: 768K bytes; (5)20-bit time-base counter(TBC); (6)8-bit timer/counter: 4 channels; (7)Capture inputs: 8 terminals; (8)Timing pulse generator; (9)PWM output; (10)C-sync signal separation; (11)VISS/VASS detection.
Diagrams
