Product Summary
The W25P243AF-4A is a high-speed, low-power, synchronous-burst pipelined, CMOS static RAM organized as 65,536 × 64 bits that operates on a single 3.3-volt power supply. A built-in two-bit burst address counter supports both Pentiumä burst mode and linear burst mode. The mode to be executed is controlled by the LBO pin. Pipelining or non-pipelining of the data outputs is controlled by the FT pin. A snooze mode can reduce power dissipation. The W25P243AF-4A supports 2T/1T mode, while disable data output within one cycle in a burst read when the W25P243AF-4A is deselected by CE2/CE3.
Parametrics
W25P243AF-4A absolute maximum ratings: (1)Input Leakage Current ILI VIN = VSSQ to VDDQ -10: +10 mA; (2)Core Supply Voltage to Vss: -0.5 to 4.6 V; (3)I/O Supply Voltage to Vss: -0.5 to 4.6 V; (4)Input/Output to VSSQ Potential VSSQ: -0.5 to VDDQ +0.5 V; (5)Allowable Power Dissipation: 1.0 W; (6)Storage Temperature: -65 to 150 °C; (7)Operating Temperature: 0 to +70 °C.
Features
W25P243AF-4A features: (1)Synchronous operation; (2)High-speed access time: 4.5/5/6 nS (max.); (3)Single +3.3V power supply; (4)Individual byte write capability; (5)3.3V LVTTL compatible I/O; (6)Clock-controlled and registered input; (7)Asynchronous output enable; (8)Pipelined data output capability; (9)Supports snooze mode (low-power state); (10)Internal burst counter supports Intel burst (Interleaved)mode & linear burst mode; (11)Support 2T/1T mode; (12)Packaged in 128-pin QFP and TQFP.

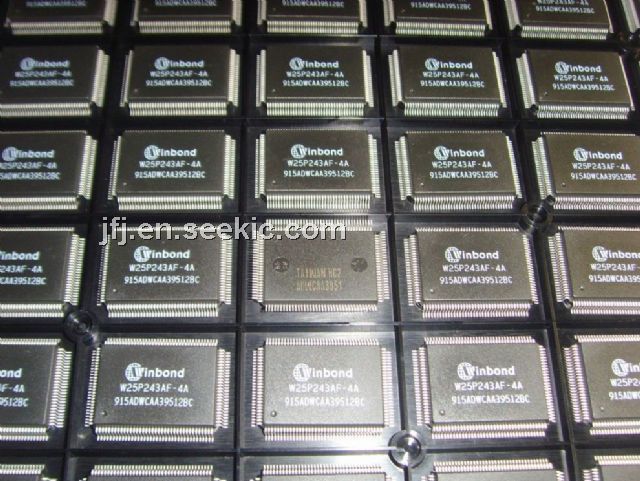

Diagrams
