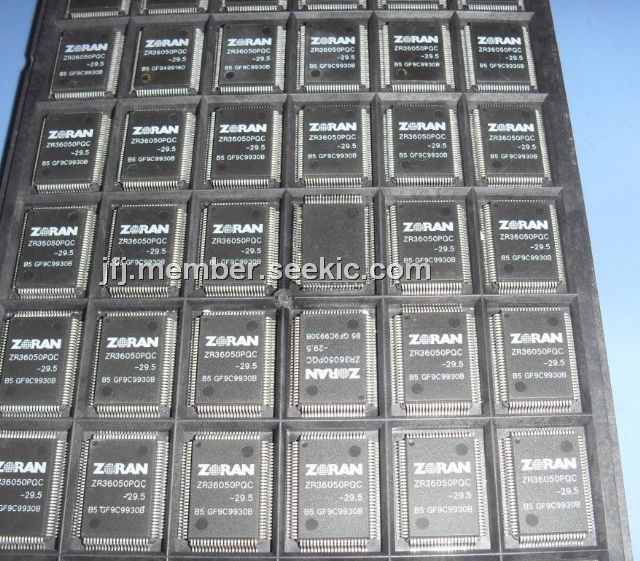

ZR36050PQC-29.5

Product Summary

The ZR36050PQC-29.5 is a high-speed JPEG Image Compression Processor that performs the algorithm specified by the JPEG Baseline and JPEG Lossless standards for high-quality image compression and expansion of continuous-tone color or mono- chrome images. The ZR36050PQC-29.5 performs Discrete Cosine Transform (DCT), quantization and variable-length encoding for image compression (coding), and the corresponding inverse operations for expansion (decoding). The applications of the ZR36050PQC-29.5 include Computer and multimedia add-in boards, Full-motion video compression/expansion, Digital still cameras and peripherals, Security and industrial systems, Videophones and color FAX machines, Color printers and scanners, Fixed bit rate image transmission devices and Cost-sensitive image compression systems.

Parametrics

ZR36050PQC-29.5 absolute maximum ratings: (1)Storage Temperature: -65 to +150℃; (2)Supply Voltage to Ground Potential Continuous: -0.5V to +7.0V; (3)DC Voltage Applied to Outputs for High Impedance Output State: -0.5V to VCC (Max); (4)DC Input Voltage: -0.5V to VCC+0.5V; (5)DC Output Current, into Outputs (not to exceed 200mA total): 20mA/output; (6)DC Input Current: -30mA to +5.0mA.

Features

ZR36050PQC-29.5 features: (1)Implements JPEG Baseline image compression and expansion, including: DCT/IDCT operations, Quantization, Variable length coding/decoding; (2)Full support of the JPEG Baseline standard, including: Bit and byte stuffing, JPEG markers including restart (RST), application (APP), and comment (COM); (3)JPEG Lossless compression and expansion ; (4)DMA/SLAVE bus interface; (5)Motion video (30 frames/sec) compression/expansion capability for CCIR resolution (720 × 480); (6)Fast Preview option: Preview of thumbnail version of images (up to 25× faster); (7)Bit rate control option: Guarantees compressed image file size; (8)Low cost solution: Low cost single chip, Support for inexpensive memories, Requires minimal host intervention; (9)TTL compatible; (10)27 and 21 MSamples/sec data-rate ; (11)Standby mode for very low power consumption; (12)100-pin plastic quad flat-pack (PQFP) packaging.

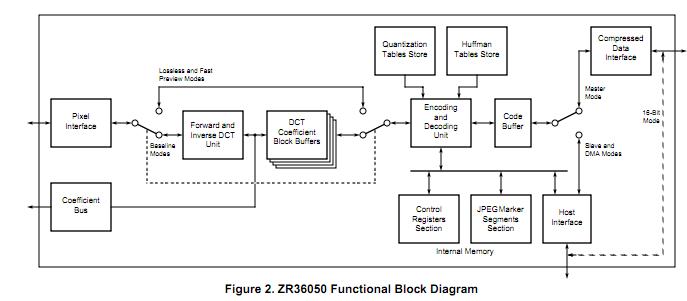

Diagrams
