Product Summary

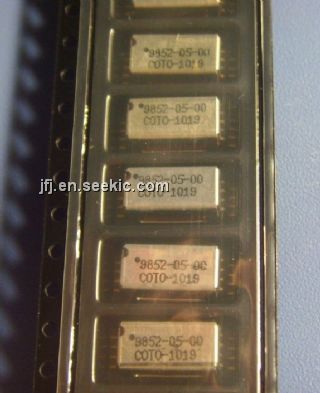

9852-05-00 is a mount reed relay of 9800 Series/Surface. The 9852-05-00 combines small size with exceptional RF performance. The 9852-05-00 is ideal for designssuch as high speed, high pin count VLSI testers where speed, size and performance are all needed.
Parametrics
9852-05-00 absolute maximum ratings: (1) Switching Voltage: 100V (Max DC/Peak AC Resist.) ; (2) Switching Current: 0.25A (Max DC/Peak AC Resist.) ; (3) Carry Current: 0.5A ( Max DC/Peak AC Resist.) ; (4) Contact Rating: 3W ( Max DC/Peak AC Resist.) ; (5) Static Contact Resistance (max. init.) : 0.125Ω; (6) Dynamic Contact Resistance (max. init.) : 0.15Ω.
Features

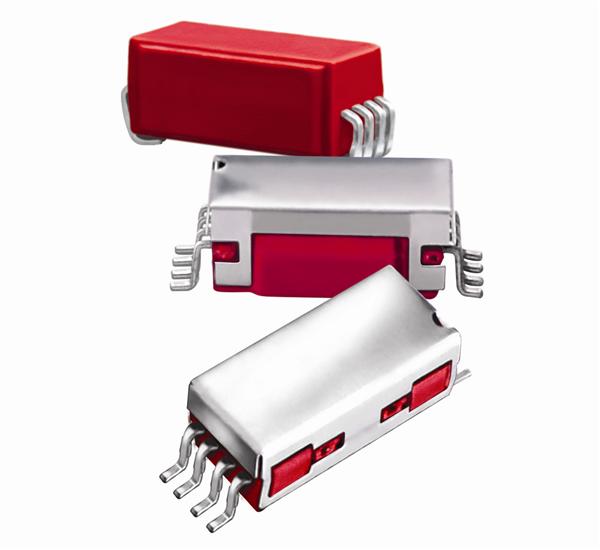

9852-05-00 features: (1) Available in Axial, Gull wing and J ± lead configurations; (2) Tape and Reel packaging available; (3) High reliability, hermetically sealed contacts for long life; (4) High Insulation Resistance - 10Ω minimum; (5) Coaxial shield for 50Ω impedance. Excellent for RF and Fast Rise Time Pulse switching (up to 6GHz) ; (6) External Magnetic Shield.

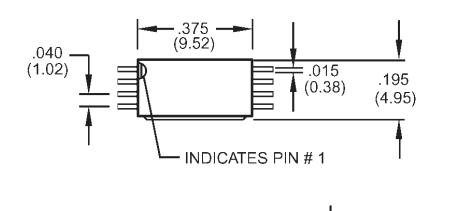

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
9852-05-00 |
Coto Technology |
Reed Relay S/M FormC Reed Relay |
Data Sheet |
|
|
|||||||||||||||
