Product Summary
The AM29LV800DB-90WBC is an 8 Mbit, 3.0 volt-only Flash memory organized as 1,048,576 bytes or 524,288 words. The AM29LV800DB-90WBC is offered in 48-ball FBGA, 44-pin SO, and 48-pin TSOP packages. The AM29LV800DB-90WBC is also available in Known Good Die (KGD) form. The AM29LV800DB-90WBC is entirely command set compatible with the JEDEC single-power-supply Flash standard.
Parametrics
AM29LV800DB-90WBC absolute maximum ratings: (1) Storage Temperature Plastic Packages: -65 to +150°C; (2) Ambient Temperature with Power Applied: -65 to +125°C; (3) Output Short Circuit Current (Note 3) : 200mA; (4) Voltage with Respect to Ground: Vcc (Note 1) -0.5 V to +4.0V; (5) RESET# (Note 2) : -0.5V to +12.5V; (6) All other pins (Note 1) -0.5 V to Vcc +0.5V.
Features
AM29LV800DB-90WBC features: (1) Single power supply operation; (2) Manufactured on 0.32 μm process technology; （3）Ultra low power consumption (typical values at 5MHz; (4) Unlock Bypass Program Command; (5) Top or bottom boot block configurations available; (6) Embedded Algorithms; (7) Minimum 1 million write cycle guarantee per sector; (8） Compatibility with JEDEC standards.

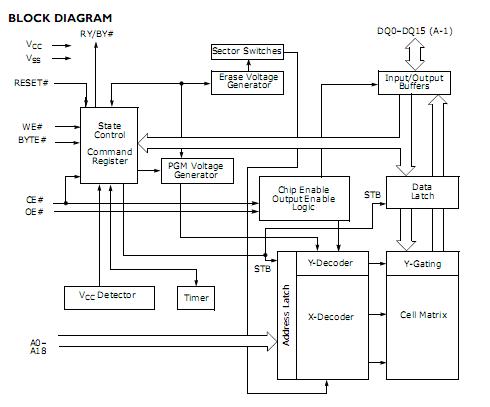

Diagrams
