Product Summary
The CY7C4225-10AC is a high-speed, low-power, first-in first-out (FIFO) memories with clocked read and write interfaces. The CY7C4225-10AC can be cascaded to increase FIFO depth. The CY7C4225-10AC provides solutions for a wide variety of data buffering needs, including high-speed data acquisition, multiprocessor interfaces, and communications buffering.
Parametrics
CY7C4225-10AC absolute maximum ratings: (1) Storage Temperature: -65 to +150°C; (2) Ambient Temperature with Power Applied: -55 to +125°C; (3) Supply Voltage to Ground Potential: -0.5 to +7V; (4) DC Voltage Applied to Outputsin High Z State: -0.5 to +7V; (5) DC Input Voltage: -0.3 to 7V; (6) Output Current into Outputs (LOW): 20mA; (7) Static Discharge Voltage: >2001V; (8) Latch-Up Current: >200mA.
Features
CY7C4225-10AC features: (1) High-speed, low-power, first-in first-out (FIFO) memories; (2) High-speed 100-MHz operation (10 ns read/write cycle time) ; (3) Fully asynchronous and simultaneous read and write operation; (4) Output Enable (OE) pin; (5) Independent read and write enable pins; (6) Center power and ground for reduced noise; (7) Width Expansion Capability; (8) Depth Expansion Capability; (9) Supports free-running 50% duty cycle clock inputs; (10) Space saving 64-pin 10x10 TQFP, and 14x14 TQFP.

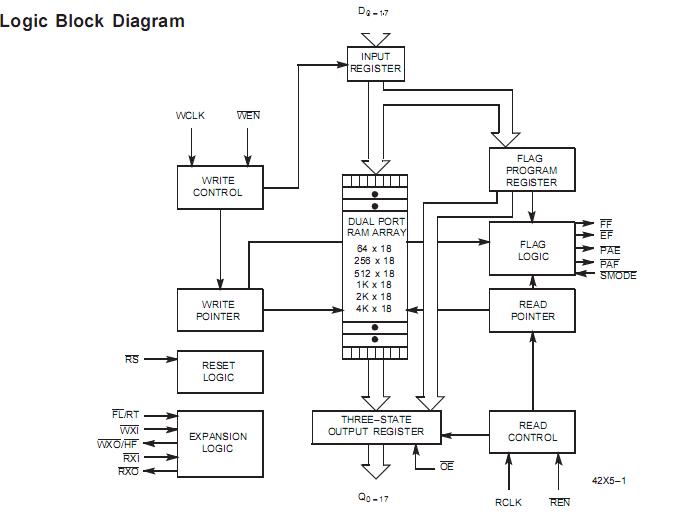

Diagrams
