Product Summary

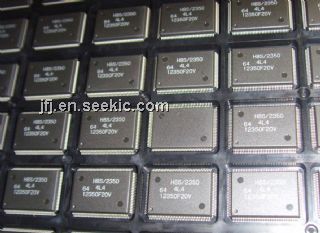

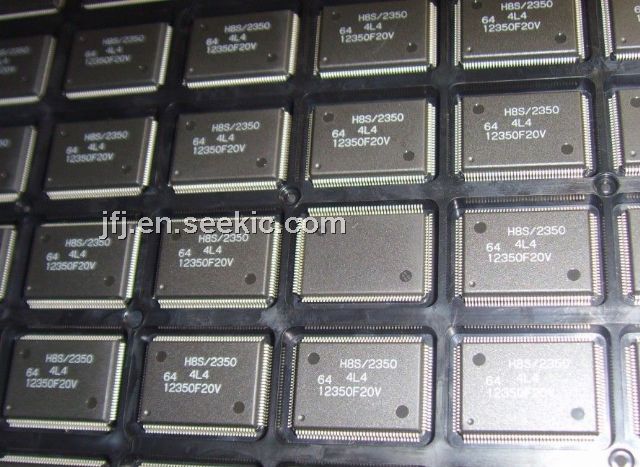

The HD6412350F20V is a microcomputer built around the H8S/2000 CPU, employing Hitachi proprietary architecture, and equipped with peripheral functions on-chip. The HD6412350F20V has an internal 32-bit architecture, is provided with sixteen 16-bit general registers and a concise, optimized instruction set designed for high-speed operation, and can address a 16-Mbyte linear address space.
Parametrics
HD6412350F20V absolute maximum ratings: (1) Power supply voltage Vcc: -0.3 to +7V; (2) Input voltage (except port 4) Vin: -0.3 to Vcc +0.3V; (3) Input voltage (port 4) Vin: -0.3 to AVcc +0.3V; (4) Reference voltage Vref: -0.3 to AVcc +0.3V; (5) Analog power supply voltage AVcc: -0.3 to +7V; (6) Analog input voltage VAN: -0.3 to AVcc +0.3V; (7) Operating temperature: Regular specifications: -20 to +70°C, Wide-range specifications: -40 to +85°C; (8) Storage temperature Tstg: -55 to +125°C.
Features
HD6412350F20V features: (1) 8-bit resolution; (2) Two output channels; (3) Maximum conversion time of 10μs (with 20 pF load) ; (3) Output voltage of 0 V to Vref; (4) D/A output hold function in software standby mode; (5) Module stop mode can be set.

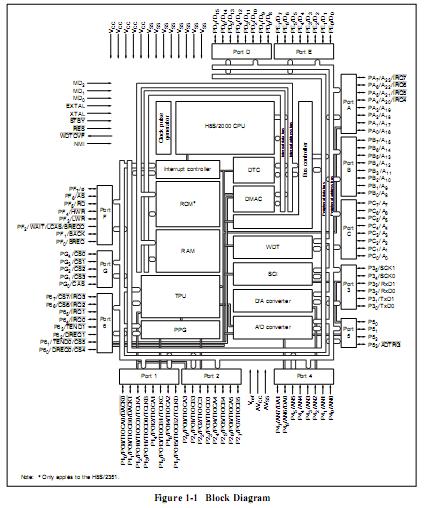

Diagrams
Image | Part No | Mfg | Description | ![]() |
Pricing (USD) |
Quantity | ||||
---|---|---|---|---|---|---|---|---|---|---|
![]() |
![]() HD6412350F20V |
![]() |
![]() IC H8S MPU ROMLESS 5V 128QFP |
![]() Data Sheet |
![]() Negotiable |
|
||||
Image | Part No | Mfg | Description | ![]() |
Pricing (USD) |
Quantity | ||||
![]() |
![]() HD6412240TE13 |
![]() |
![]() IC H8S MPU ROMLESS 100TQFP |
![]() Data Sheet |
![]() Negotiable |
|
||||
![]() |
![]() HD6412322RVF25 |
![]() |
![]() IC H8S MCU ROMLESS 128-QFP |
![]() Data Sheet |
![]() Negotiable |
|
||||
![]() |
![]() HD6412322RVFBL25 |
![]() |
![]() IC H8S MCU ROMLESS 128-QFP |
![]() Data Sheet |
![]() Negotiable |
|
||||
![]() |
![]() HD6412332VFCBL25 |
![]() Renesas Technology America |
![]() IC H8S MCU ROMLESS 144-QFP |
![]() Data Sheet |
![]() Negotiable |
|
||||
![]() |
![]() HD6412350F20 |
![]() |
![]() IC H8S MPU ROMLESS 5V 128QFP |
![]() Data Sheet |
![]() Negotiable |
|
||||
![]() |
![]() HD6412350F20V |
![]() |
![]() IC H8S MPU ROMLESS 5V 128QFP |
![]() Data Sheet |
![]() Negotiable |
|
