Product Summary

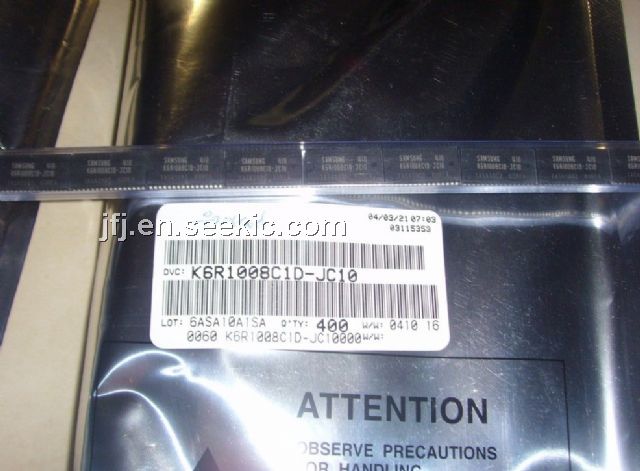

The K6R1008C1D-JC10 is a 1,048,576-bit high-speed Static Random Access Memory organized as 262,144 words by 4 bits. The K6R1008C1D-JC10 uses 4 common input and output lines and has an output enable pin which operates faster than address access time at read cycle. The K6R1008C1D-JC10 is fabricated using SAMSUNGadvanced CMOS process and designed for high-speed circuit technology.
Parametrics
K6R1008C1D-JC10 absolute maximum ratings: (1) Voltage on Any Pin Relative to VSS: -0.5 to Vcc +0.5V; (2)Voltage on VCC Supply Relative to VSS: -0.5 to 7V; (3) Power Dissipation: 1W; (4) Storage Temperature: -65 to 150°C; (5) Operating Temperature, Commercial: 0 to 70°C, Industrial: -40 to +85°C.
Features
K6R1008C1D-JC10 features: (1) Fast Access Time 10ns(Max.) ; (2) TTL Compatible Inputs and Outputs; (3) I/O Compatible with 3.3V Device; (4) Fully Static Operation; (5) Three State Outputs; (6) Center Power/Ground Pin Configuration; (7) Operating in Commercial and Industrial Temperature range.

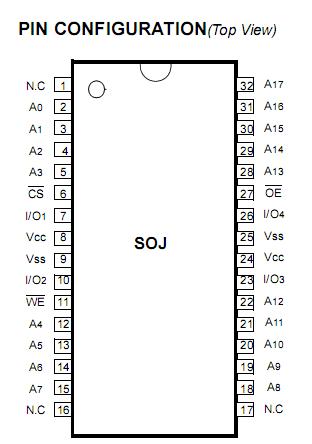

Diagrams
