Product Summary
The LTC1264CSW is a high speed, quad universal filter building block. The aliasing performance of the LTC1264CSW is improved by double-sampling each 2nd order section. Applications of the LTC1264CSW include: Digital Communications, Spread Spectrum Communications, Spectral Analysis, Loran Receivers and Instrumentation.
Parametrics
LTC1264CSW absolute maximum ratings: (1) Total Supply Voltage (V+ to V-) : 16V; (2) Input Voltage: (V+ +0.3V ) to (V- -0.3V) ; (3) Output Short-Circuit Duration: Indefinite; (4) Power Dissipation: 400mW; (5) Burn-In Voltage: 16V; (6) Operating Temperature Range: -40 to 85°C; (7) Storage Temperature Range: -65 to +150°C; (8) Lead Temperature (Soldering, 10 sec) : 300°C.
Features
LTC1264CSW features: (1) High Speed, Up to 250kHz Center Frequency; (2) Four Identical Filters in a 0.3 inch Wide Package; (3) Clock-to-Center Frequency Ratio of 20:1; (4) Double-Sampling, Improved Aliasing; (5) Operates from ±2.37V to ±8V Power Supplies; (6) Customized Version with Internal Resistors Available; (7) Low Noise; (8) Low Harmonic Distortion; (9) Available in 24-Pin DIP and SO Wide Packages.

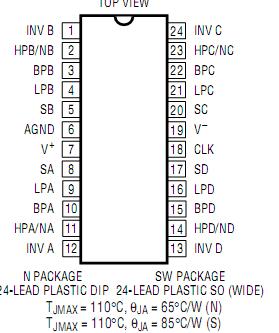

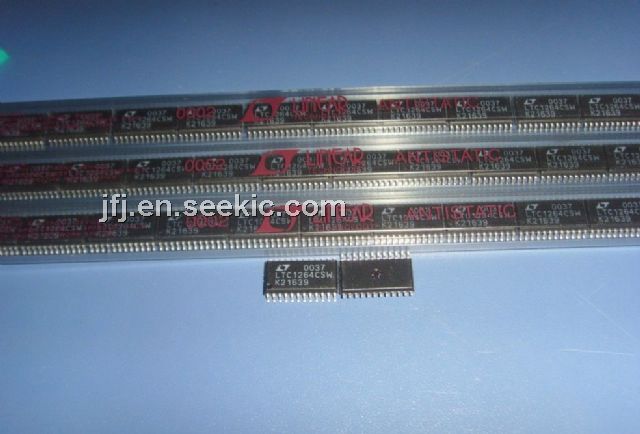

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LTC1264CSW |
|
IC FILTR BUILDNG BLK HISPD24SOIC |
Data Sheet |
|
|
||||||
|
LTC1264CSW#PBF |
|
IC FILTR BUILDNG BLK HISPD24SOIC |
Data Sheet |
|
|
||||||
|
LTC1264CSW#TR |
|
IC FILTER BUILD BLK QUAD 24-SOIC |
Data Sheet |
|
|
||||||
|
LTC1264CSW#TRPBF |
|
IC FILTER BUILD BLK QUAD 24-SOIC |
Data Sheet |
|
|
||||||
