Product Summary
The M27C1001-70C1 is a 1 Mbit EPROM offered in the two ranges UV (ultra violet erase) and OTP (one time programmable) . The M27C1001-70C1 is ideally suited for microprocessor systems requiring large programs and is organized as 131,072 words of 8 bits.
Parametrics
M27C1001-70C1 absoute maximum ratings: (1) Ambient Operating Temperature TA: -40 to 125°C; (2) Temperature Under Bias TBIAS: -50 to 125°C; (3) Storage Temperature TSGT: -65 to 150°C; (4) Input or Output Voltage (except A9) VIO: -2 to 7V; (5) Supply Voltage Vcc: -2 to 7V; (6) A9 Voltage: -2 to 13.5V; (7) Program Supply Voltage Vpp: -2 to 14V.
Features
M27C1001-70C1 features: M27C512-15C6 features: (1) 5V ±10% supply voltage in READ operation; (2) Access time: 35ns; (3) low power consumption; (4) programming voltage: 12.75±0.25V; (5) programming time: 100μs/word; (6) electronic signature: manufcature code: 20h, device code: 0.5h.

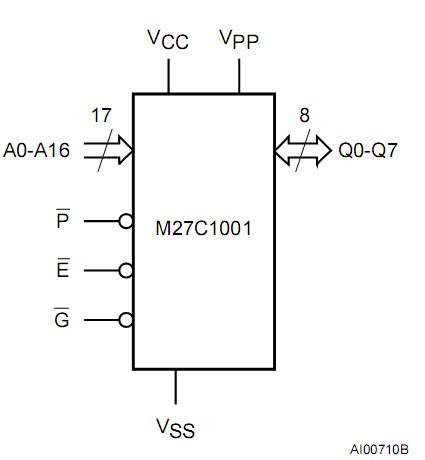

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 M27C1001-70C1 |
STMicroelectronics |
EPROM 1M (128Kx8) 70ns |
Data Sheet |
Negotiable |
|
||||
|
M27C1001-70C1TR |
STMicroelectronics |
EPROM 1M (128Kx8) 70ns |
Data Sheet |
Negotiable |
|
||||
