Product Summary
The MB87S4401PMC-G-JNE1 is a CMOS PLL frequency synthesizer. The MB87S4401PMC-G-JNE1 contains an inverter for connection to an external oscillator, a programmable reference divider, a divide factor of programmable reference divider control circuit, a phase detector, a charge pump, a 17-bit shift register,a 17-bit latch, a programmable divider, and a control generator for an external dual modules prescaler.
Parametrics
MB87S4401PMC-G-JNE1 (1)Power supply voltage, VDD: VSS -0.5 to VSS +7V; (2)Input voltage, Vin: VSS -0.5 to VDD +0.5V; (3)Output voltage, VOUT: VSS -0.5 to VDD +0.5V; (4)Output current, Iout: ±10mA; (5)Open-drain output, Voop: VSS -0.5 to VDD +3.0V; (6)Operating temperature, TA: -40 to 85℃; (7)Storage temperature, Tstg: -65 to 150℃; (8)Power dissipation, PD: 300mW.
Features
MB87S4401PMC-G-JNE1 features: (1)Single power supply voltage: VDD=2.7V to 5.5V; (2)Wide temperature range: TA=-40 to 85℃; (3)13MHz typical input capability@5V (fin input); (4)On-chip inverter for oscillator; (5)8 devide factors for programmble reference divider is selected by S1, S2 and S3 input; (6)Programmable 17-bie divider with input amplifier consisting of: binary 7-bit swallow counter, binary 10-bit programmable counter; (7)2 type of phase detector output, on-chip charge pump output, output for external charge pump; (8)Easy interface to Fujitsu dual modules prescaler.

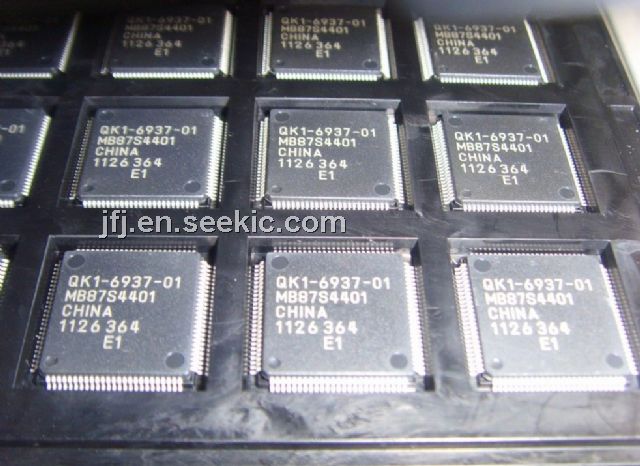

Diagrams
