Product Summary

The MIP804000L is a Silicon MOS IC. The application of the MIP804000L includes EL drive.

Parametrics

MIP804000L absolute maximum ratings: (1)Power supply voltage, VCC: -0.5 to 4V; (2)Input voltage (ENB), VENB: -0.5 to VCC + 0.5V; (3)Output voltage (CIL), VCIL: -0.5 to 220V; (4)Output voltage (ELD), VELD: -0.5 to 220V; (5)Output current (CIL), ICIL: 60mA; (6)Output current (ELD), IELD: 120mA; (7)Allowable power dissipation, PD: 150mW; (8)Operating ambient temperature, Topr: -20 to 70℃; (9)Channel temperature, Tch: -20 to 125℃; (10)Storage temperature, Tstg: -55 to 125℃.

Features

MIP804000L features: (1)Allowing downsizing of the sets through the reduction of a parts count resulting from the voltage step-up utilizing a coil instead of a transformer and employing the thin surface mounting package; (2)Allowing low voltage drive (adaptable to a small and low-voltage battery), or VCC = 3V or 1.5V drive; (3)Allowing to adjust the EL light brightness responding to changes in oscillation frequency which can be changed by the external resistor.

Diagrams

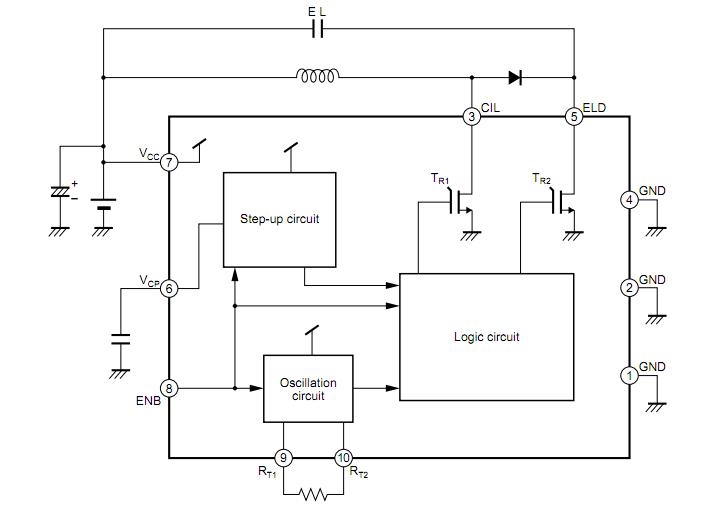

MIP804000L block diagram
