Product Summary

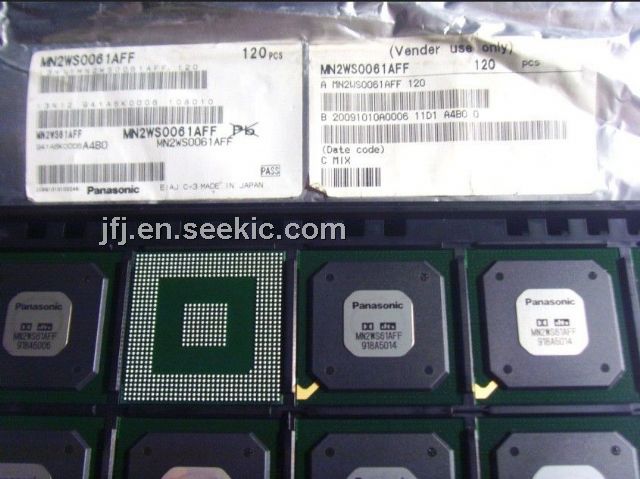

The MN2WS61AFF is a Single-Chip HDTV System LSI.
Features
MN2WS61AFF features: (1)Plug-and-Play/OpenCable and DVB ready with a onchip CableCARD interface and Common Interface.; (2)Reference design available including OpenCable software stacks; (3)Video input for ITU-R BT.656 format; (4)Video scaling and aspect conversion; (5)Unified Memory Architecture. Main memory is DDR333 or DDR400 SDRAM with capacity from 128 Mbits to 2 Gbits; (6)NAND flash memory interface (8- and 16-bit) that supports ECC calculation and error detection; (7)Compact BGA package, 23 mm2, with maximum power consumption of only 2 W; (8)32-bit RISC CPU delivers 200 MIPS and makes efficient use of system resources by using variable-length instructions; (9)Transport decoder can demultiplex one stream from up to 3 sources; 48 PID filters, 40 section filters, supports partial TS output.

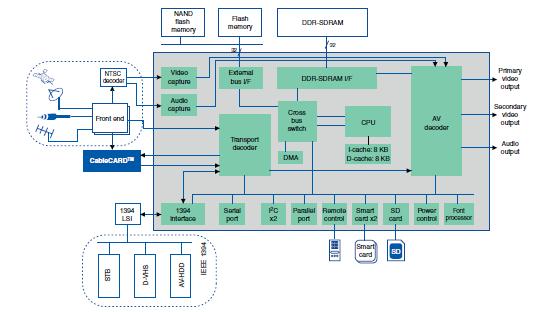

Diagrams
