Product Summary

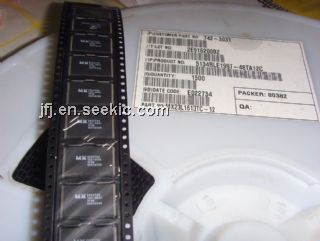

The MX23L1613TC-12 is a 16M-bit mask ROM.

Parametrics

MX23L1613TC-12 absolute maximum ratings: (1)Voltage on any Pin Relative to VSS, VIN: -0.3V to 3.9V; (2)Ambient Operating Temperature, Topr: -40℃ to 85℃; (3)Storage Temperature, Tstg: -65℃ to 125℃.

Features

MX23L1613TC-12 features: (1)Bit organization, 2M x 8 (byte mode); 1M x 16 (word mode); (2)Fast access time, Random access: 70ns(max.); (3)Current, Operating: 25mA; Standby: 5uA; (4)Supply voltage, 2.7V ~ 3.6V; (5)Package, 48 pin TSOP(12mm x 20mm); (6)Temperature: -40 to 85℃.

Diagrams

MX23L1613TC-12 block diagram
