Product Summary
The OXU931DS-LQAG is a single chip solution for bridging between USB 2.0 or eSATA and hard disks. Optimized for performance and offering increased functionality on the external SATA-to-SATA path, the OXU931DS-LQAG supports a range of RAID and storage applications targeted at users requiring maximum performance, reliability and ease of use.
Features
OXU931DS-LQAG features: (1)High performance dual SATA storage controller; (2)Integrated SATA cores and PHYs, Port can be configured for eSATA; (3)device operation; Supports SATA II Gen2m specification and 3.0Gbps and 1.5Gbps interfaces; (4)Integrated 480Mbps USB2.0 high speed core and PHY; (5)Integrated hardware RAID controller supporting (over USB): Disk striping (RAID0) for maximum performance; Disk mirroring (RAID 1) for maximum data protection; Disk spanning for large capacity; (6)single volume; (7)External flash interface; (8)I2C interface for optional EEPROM; (9)USB and USB mass-storage compliant; (10)Support for USB Human Interface Device (HID); (11)12 GPIOs allow easy product customization.

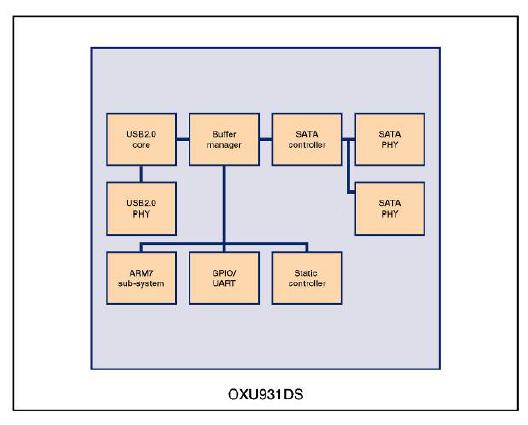

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 OXU931DS-LQAG |
PLX Technology |
Peripheral Drivers & Components (PCIs) USB2.0 to dual SATA bridge |
Data Sheet |
Negotiable |
|
||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||
|
OXU921DSE-FBAG |
PLX Technology |
USB Interface IC USB2.0 to Dual SATA Brdg Cont. w/encryp. |
Data Sheet |
Negotiable |
|
||||
|
OXU921DS-FBAG |
PLX Technology |
USB Interface IC USB2.0 to Dual SATA Bridge Cont. |
Data Sheet |
Negotiable |
|
||||
|
OXU931DS |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
OXU931DS-LQAG |
PLX Technology |
Peripheral Drivers & Components (PCIs) USB2.0 to dual SATA bridge |
Data Sheet |
Negotiable |
|
||||
|
OXU931S |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
OXU931SF |
Other |
|
Data Sheet |
Negotiable |
|
||||
