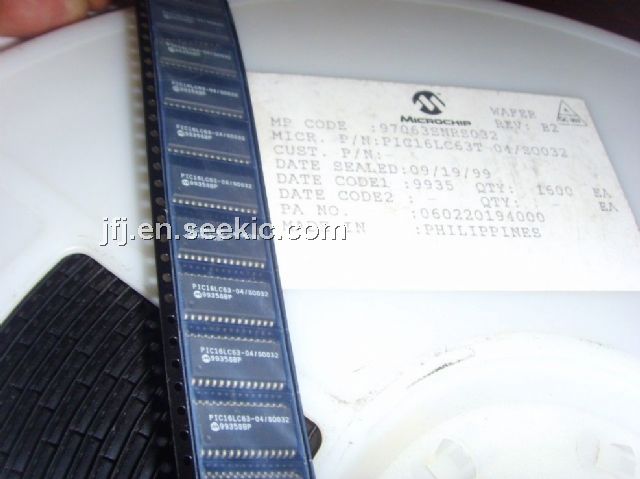

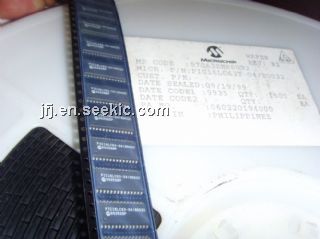

Product Summary
The PIC16LC63T-04/SO032 is a low cost, high performance, CMOS, fully-static, 8-bit microcontroller.
Parametrics
PIC16LC63T-04/SO032 absolute maximum ratings: (1)Ambient temperature under bias: -55℃ to +125℃; (2)Storage temperature: -65℃ to +150℃; (3)Voltage on any pin with respect to VSS (except VDD, MCLR, and RA4): -0.3V to (VDD + 0.3V); (4)Voltage on VDD with respect to VSS: 0V to +7.5V; (5)Voltage on MCLR with respect to VSS: 0V to +13.25V; (6)Voltage on RA4 with respect to VSS: 0V to +8.5V; (7)Voltage on VLCD2, VLCD3 with respect to VSS: 0V to +10V; (8)Total power dissipation: 1.0 W; (9)Maximum current out of VSS pin: 300 mA; (10)Maximum current into VDD pin: 250 mA; (11)Input clamp current, IIK (VI < 0 or VI > VDD): ±20 mA; (12)Output clamp current, IOK (VO < 0 or VO > VDD): ±20 mA; (13)Maximum output current sunk by any I/O pin: 25 mA; (14)Maximum output current sourced by any I/O pin: 25 mA; (15)Maximum current sunk by all Ports combined: 200 mA; (16)Maximum current sourced by all Ports combined: 200 mA.
Features
PIC16LC63T-04/SO032 features: (1)High performance RISC CPU; (2)Only 35 single word instructions to learn; (3)All single cycle instructions except for program branches which are two cycle; (4)Operating speed: DC - 20 MHz clock input DC - 200 ns instruction cycle; (5)4 K x 14 words of Program Memory, 192 x 8 bytes of Data Memory (RAM); (6)Interrupt capability; (7)Eight-level deep hardware stack; (8)Direct, indirect and relative addressing modes; (9)Power-on Reset (POR); (10)Power-up Timer (PWRT) and Oscillator Start-up Timer (OST); (11)Watchdog Timer (WDT) with its own on-chip RC oscillator for reliable operation; (12)Programmable code protection; (13)Power-saving SLEEP mode; (14)Selectable oscillator options; (15)Low power, high speed CMOS EPROM technology; (16)Wide operating voltage range: 2.5V to 5.5V; (17)High Sink/Source Current 25/25 mA; (18)Commercial, Industrial and Automotive temperature ranges.
