Product Summary

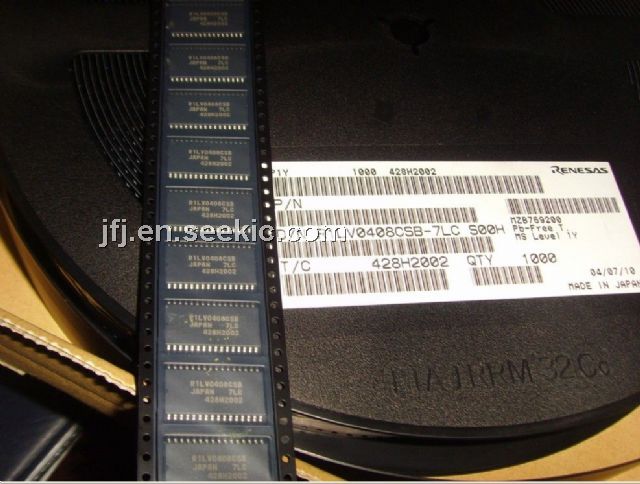

The R1LV0408CSB-7LC is a 4-Mbit static RAM organized 512-kword×8-bit. The R1LV0408CSB-7LC has realized higher density, higher performance and low power consumption by employing CMOS process technology (6-transistor memory cell). The R1LV0408CSB-7LC Series offers low power standby power dissipation; therefore, it is suitable for battery backup systems. It has packaged in 32-pin SOP, 32-pin TSOP II and 32-pin STSOP.
Parametrics
R1LV0408CSB-7LC absolute maximum ratings: (1)Power supply voltage relative to VSS: -0.5 to +4.6 V ; (2)Terminal voltage on any pin relative to VSS: -0.5*1 to VCC + 0.5*2V ; (3)Power dissipation: 0.7 W ; (4)Operating temperature: -20 to +70°C; (5)Storage temperature range: -65 to +150°C; (6)Storage temperature range under bias: -20 to +85°C.
Features
R1LV0408CSB-7LC features: (1)Single 3 V supply: 2.7 V to 3.6 V; (2)Access time: 55/70 ns (max); (3)Power dissipation: Active:6 mW/MHz (typ)-Standby:1.5μW (typ); (4)Completely static memory-No clock or timing strobe required; (5)Equal access and cycle times; (6)Common data input and output; (7)Directly TTL compatible; (8)Battery backup operation; (9)Operating temperature: -20 to +70°C.

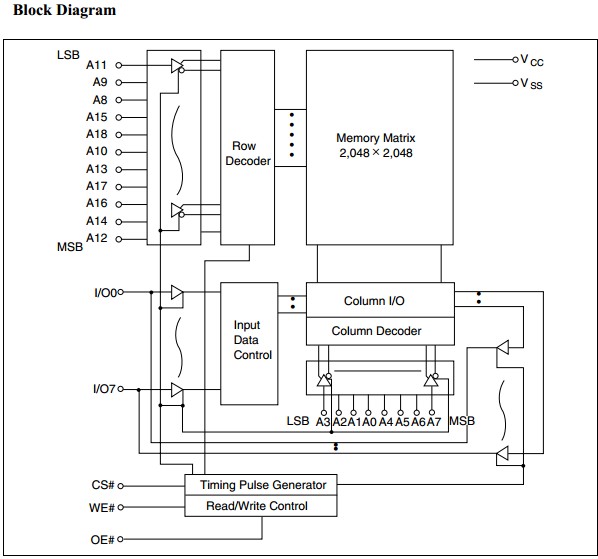

Diagrams
