Product Summary
The S29AL008J70BFI020E is a 8 Mbit, 3.0 Volt-only Flash memory organized as 1,048,576 bytes or 524,288 words. The S29AL008J70BFI020E is offered in 48-ball Fine-pitch BGA (0.8 mm pitch), and 48-pin TSOP packages. The word-wide data (x16) appears on DQ15–DQ0; the byte-wide (x8) data appears on DQ7–DQ0. The S29AL008J70BFI020E is entirely command set compatible with the JEDEC single-power-supply Flash standard. Commands are written to the command register using standard microprocessor write timings. Register contents serve as input to an internal state-machine that controls the erase and programming circuitry.
Parametrics
S29AL008J70BFI020E absolute maximum ratings: (1)Storage Temperature Plastic Packages: –65°C to +150°C; (2)Ambient Temperature with Power Applied: –65°C to +125°C; (3)VCC: –0.5 V to +4.0 V; (4)A9, OE#, and RESET#: –0.5 V to +13.0 V; (5)WP#/ACC: –0.5 V to +10.5 V; (6)All other pins: –0.5 V to VCC +0.5 V; (7)Output Short Circuit Current: 200 mA.
Features
S29AL008J70BFI020E features: (1)128/128/64/32 Mbit Page Mode devices; (2)Page size of 8 words: Fast page read access from random locations within the page; (3)Single power supply operation; (4)Full Voltage range: 2.7 to 3.6 volt read, erase, and program operations for battery-powered applications; (5)Dual Chip Enable inputs (only in PL129J); (6)Two CE# inputs control selection of each half of the memory space; (7)Simultaneous Read/Write Operation; (8)Both top and bottom boot blocks in one device; (9)Manufactured on 110 nm process technology; (10)Data Retention: 20 years typical; (11)Cycling Endurance: 1 million cycles per sector typical.

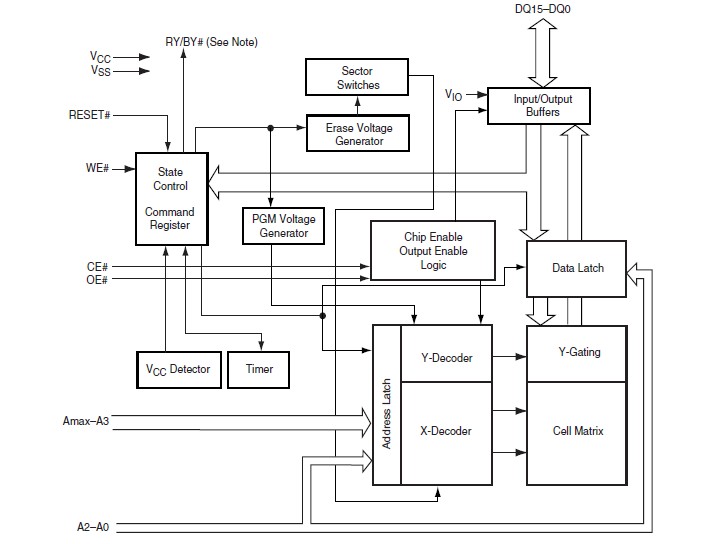

Diagrams
