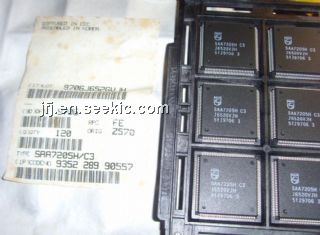

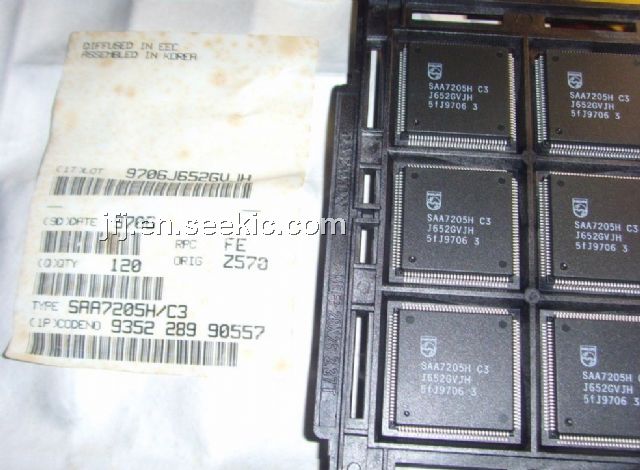

Product Summary
The SAA7205H/C3 is a MPEG-2 systems demultiplexer.
Parametrics
SAA7205H/C3 absolute maximum ratings: (1)VDDD(core)digital supply voltage for core: -0.5 to +5.0 V; (2)VDDD(pads)digital supply voltage for pads: -0.5 to +6.5 V; (3)VI DC input voltage: -0.5 to VDDD + 0.5 V; (4)VO DC output voltage: -0.5 to VDDD + 0.5 V; (5)Ii(max)maximum input current: -10 to +10 mA; (6)Io(max)maximum output current: -20 to +20 mA; (7)Tstg storage temperature: -65 to +150 °C; (8)Tamb operating ambient temperature: 0 to 70 °C．
Features
SAA7205H/C3 features: (1)Input data fully compliant with the Transport Stream (TS)definition of the MPEG-2 systems specification (International Standard; November 1994); (2)Input data signals: Forward Error Correction (FEC)or descrambler interface; (3)External memory; standard 32K × 8-bit static RAM. Required typical access time £ 50 ns, write pulse width (tWP)≤ 35 ns.; (4)Effective bit rate: fbit ≤ 72 MHz; (5)Control Interface; 8-bit multiplexed data/address.
Diagrams
