TLE6236G

PDSO28, 250mA, 1.7 Ohm, 4.5 V ~ 5.5 V, Smart Octal Low-Side Switch

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.80~2.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.80~2.00

PartNumber:: TLE6236G

Brand:: Infineon Technologies AG - Infineon | Pack: SOP | D/C: 04+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Helen Li's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-03-15

From Other Seller

Part Number:TLE6236G
US $1.80 - 2.00
HT46R47

US $0.35 - 1.50 / Piece
(0) Remove
RTL8309SC

US $1.50 - 2.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

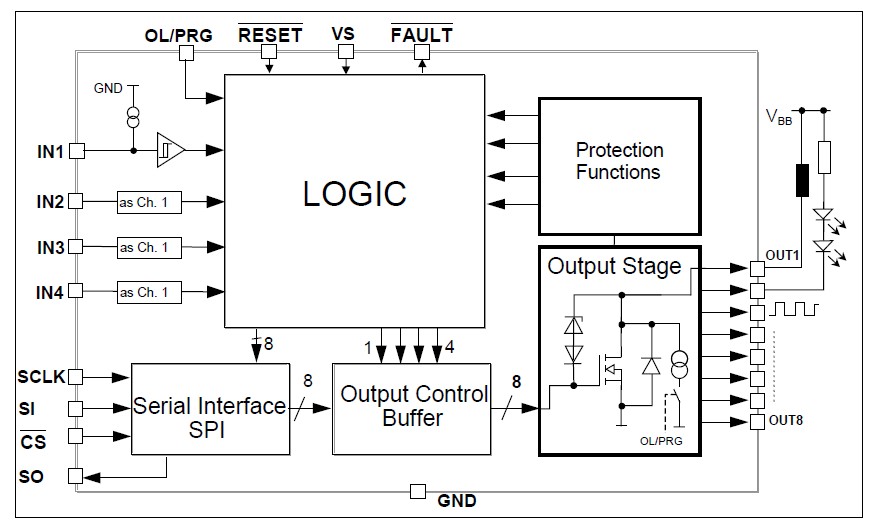

The TLE6236G is a Smart Octal Low-Side Switch protected by embedded protection functions and designed for automotive and industrial applications. The output stages of the TLE6236G are controlled via an SPI Interface. Additionally four channels can be controlled direct in parallel for PWM applications. The open load detection (pull down sources) can be disabled via the OL/PRG pin. Then the leakage current of the TLE6236G is reduced to 1μA (max.) to avoid e.g. the glowing of LEDs in off state. Therefore the TLE6236G is particularly suitable for body control units, dash board illumination or engine management systems. The applications of the TLE6236G include μC Compatible Power Switch for 12V and 24VApplications, Switch for Automotive and Industrial System, Solenoids, Relays, Resistive Loads, LEDs and Robotic Controls.

Parametrics

TLE6236G maximum ratings: (1)Supply Voltage VS: -0.3 to +7 V; (2)Continuous Drain Source Voltage VDS: 45 V; (3)Input Voltage, All Inputs and Data Lines VIN: - 0.3 to + 7 V; (4)Operating Temperature Rang Tj: - 40 to + 150 ℃; (5)Storage Temperature Range Tstg: - 55 to + 150 ℃; (6)Output Current per Channel (see el. characteristics) ID(lim) ID(lim): min A; (7)Output Current per Channel @ TA = 25℃ (All 8 Channels ON; Mounted on PCB )ID: 250 mA; (8)Output Clamping Energy ID = 0.25 A EAS: 10 mJ.

Features

TLE6236G fearures: (1)Short Circuit Protection; (2)Overtemperature Protection; (3)Overvoltage Protection; (4)8 bit Serial Data Input and Diagnostic Output (accSPI protocol); (5)Direct Parallel Control of Four Channels for PWM Applications; (6)General Fault Flag; (7)Daisy chainable with other SPI devices; (8)Very Low Leakage Current; (9)Compatible with 3V Micro Controllers; (10)Electostatic Discharge (ESD) Protection.
