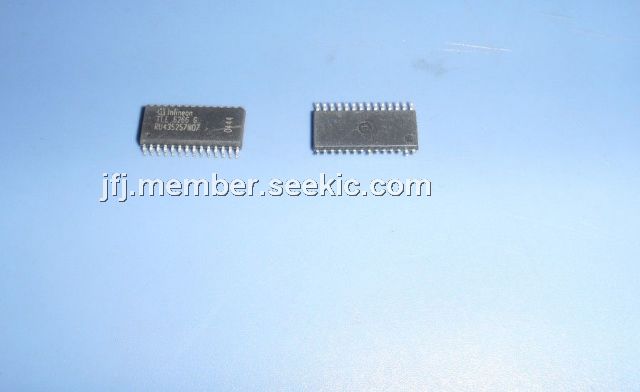

TLE6266G

Product Summary

The TLE6266G is a monolithic integrated circuit in an enhanced power P-DSO-28-18 package, which incorporates a failure tolerant low speed CAN-transceiver for differential mode data transmission, a low dropout voltage regulator for internal and external 5V supply as well as a 16 bit SPI interface to control and monitor the IC. Further there are integrated additional features like three high side switches, two low side switches, a window watchdog circuit and a reset circuit. The IC TLE6266G offers a low current consumption mode, that reduces the current to typ. 70μA.

Parametrics

TLE6266G absolute maximum ratings: (1)Supply voltage, VS: -0.3 to 28 V; (2)Supply voltage, VS: -0.3 to 40 V; (3)Regulator output voltage, VCC: -0.3 to 5.5 V; (4)CAN input voltage (CANH, CANL), VCANH/L: -10 to 28 V; (5)CAN input voltage (CANH, CANL), VCANH/L: -40 to 40 V; (6)Transient voltage at CANH and CANL, VBUS: – 150 to 100 V; (7)Logic input voltages ( DI, CLK, CSN, WK, PWM, TxD), VI: -0.3 to VCC +0.3V; (8)Logic output voltage (DO, RO, RxD), VDO/RO/RD: -0.3 to VCC +0.3V; (9)Termination input voltage (RTH, RTL), VTL /TH: -0.3 to VS +0.3V; (10)Electrostatic discharge voltage at pin CANH, CANL to GND, VESD: -3000 to 3000 V; (11)Electrostatic discharge voltage to all pins, VESD: -1000 to 1000 V.

Features

TLE6266G features: (1)Standard Fault Tolerant differential CAN-Transceiver; (2)Bus Failure Management; (3)Low current consumption mode < 70μA; (4)CAN Data Transmission Rate up to 125 kBaud; (5)Low-Dropout Voltage Regulator 5V ± 2%; (6)Two Low Side Switches; (7)Three High Side Switches with internal Charge Pump; (8)Power On and Under-Voltage Reset Generator; (9)Vcc Supervisor; (10)Window Watchdog; (11)Flash Program Mode; (12)Programable Cyclic Wake Timing via SPI; (13)Integrated Fail-Safe Mechanism; (14)Standard 16 bit SPI-Interface; (15)Wide Input Voltage and Temperature Range; (16)Thermal Protection; (17)Enhanced Power P-DSO-Package; (18)Wakeup Input Pin.

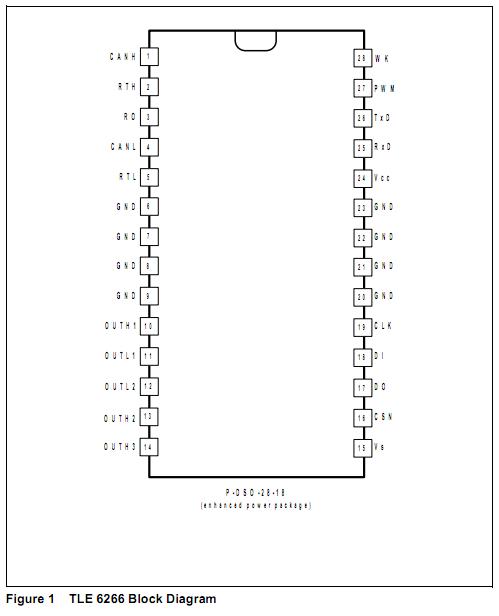

Diagrams
