Product Summary

The UAA3595HN/C3 is a Wideband Code Division Multiple Access (WCDMA) silicon bipolar transistor Monolithic Microwave Integrated Circuit (MMIC) Power Amplifier (PA). The UAA3595HN/C3 is specially designed to operate at a nominal 3.6 V battery supply voltage. It includes a current saving architecture at low output power levels. The UAA3595HN/C3 is ideal for WCDMA-FDD applications.

Parametrics

UAA3595HN/C3 absolute maximum ratings: (1)VC1 supply voltage for the first stage collector: 5.5 V; (2)Vreg regulated voltage: 3.3 V; (3)Tj(max)maximum operating junction temperature: 150 °C; (4)Ptot total power dissipation: tbf mW; (5)Pi input power: 10 dBm; (6)Tstg storage temperature: -55 to +150 °C; (7)Ileak leakage current VC1 = 4.5 V; pin EN is LOW: 5 mA.

Features

UAA3595HN/C3 features: (1)3.6 V nominal supply voltage; (2)24 dBm average output power; (3)0 dBm input power; (4)Wide operating temperature range from -30 to +70 °C; (5)HVQFN16 package.

Diagrams

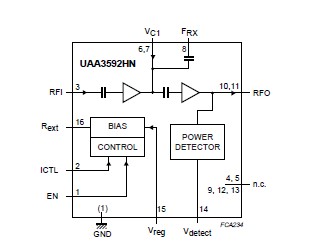

UAA3595HN/C3 pin connection
