Product Summary

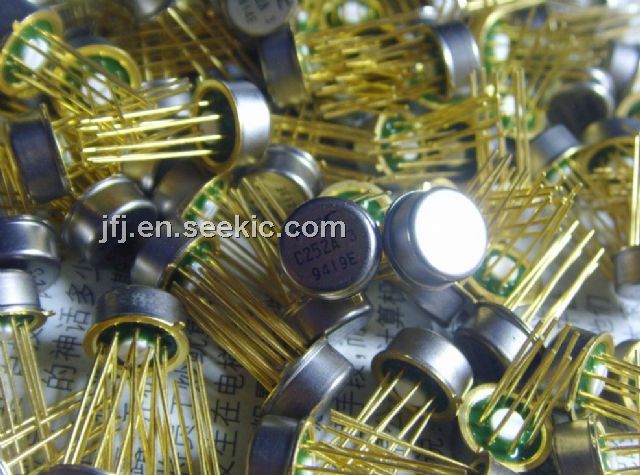

The UPC252A is a dual general purpose operational amplifier having internal frequency compensating circuits. The UPC252A is intended for a wide range of analog applicaitons. High common mode voltage range and no latch up tendencides make this amplifer ideal for use as a voltage follower.

Parametrics

UPC252A absolute maximum ratings: (1)voltage between V+ and V-: 36V; (2)power dissipation: 500mW; (3)differential input voltage: ±30V; (4)input voltage: ±15V; (5)operating tempeature range: -20 to 80℃; (6)storage temperature range: -55 to 150℃.

Features

UPC252A features: (1)dual upC151/741 internally frequency compensated operational amplifier; (2)short circuit protection; (3)large common mode and differential input voltage; (4)no latch up; (5)MC1458 direct replacement.

Diagrams

UPC252A pin connection
